Sutton Estate

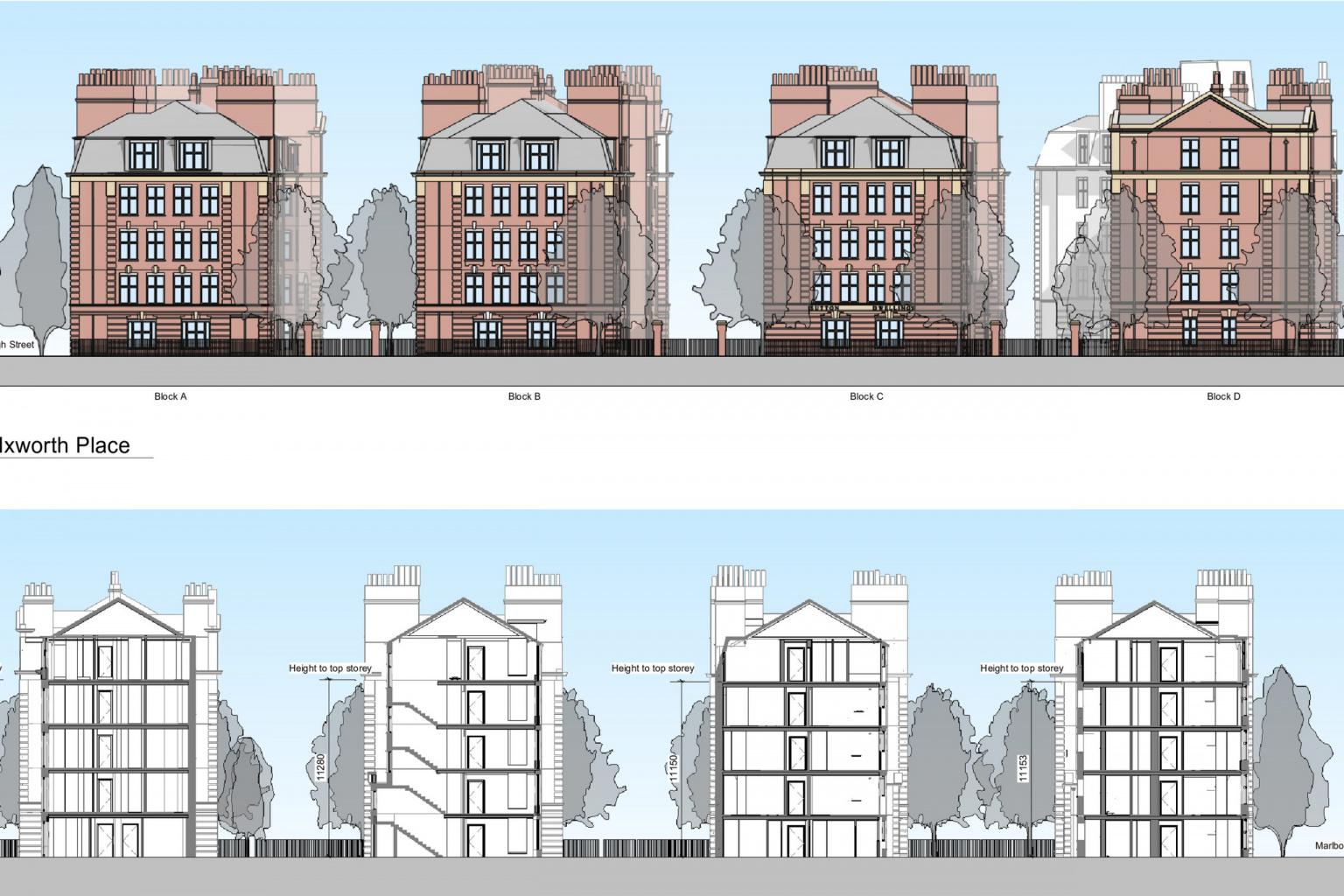

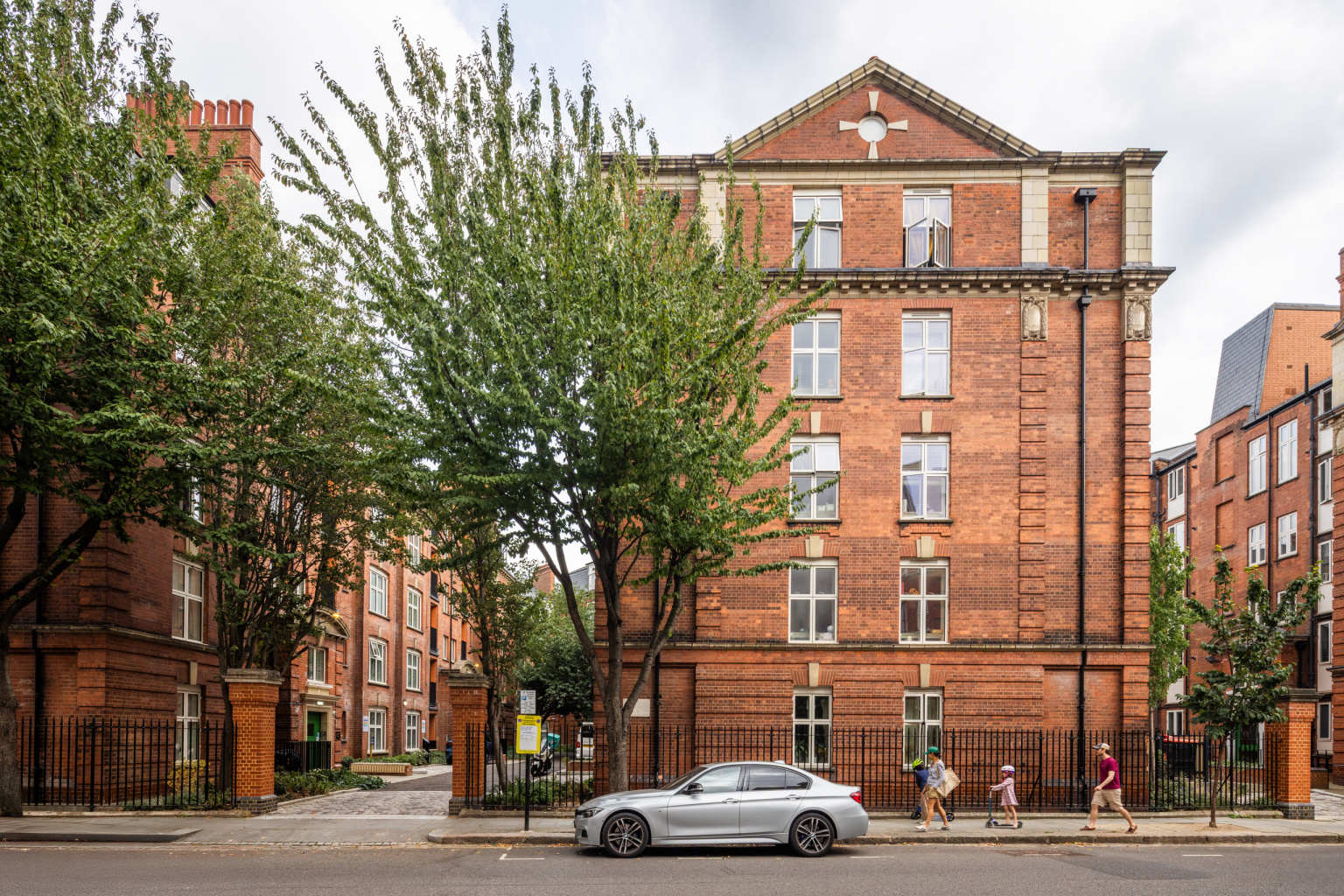

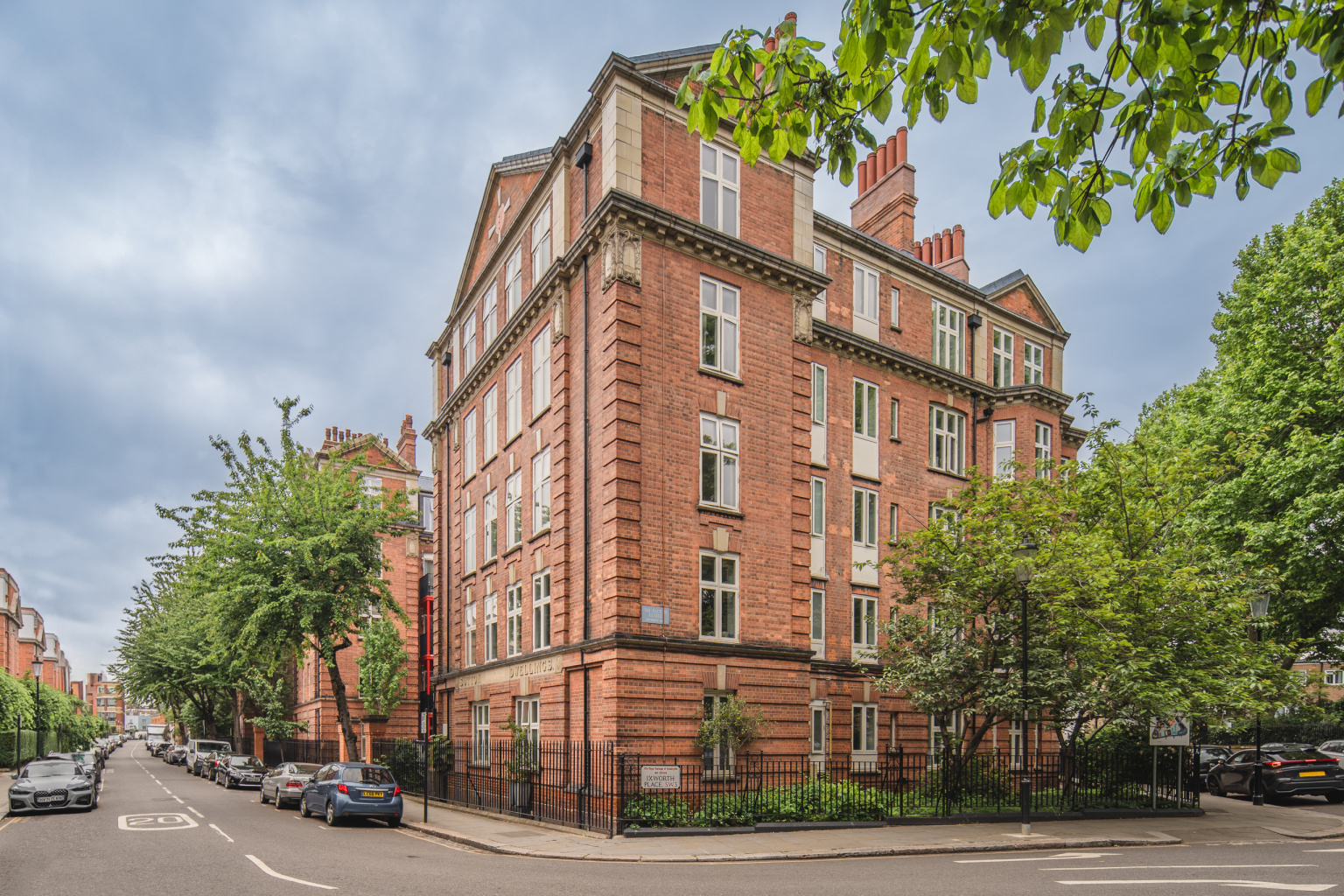

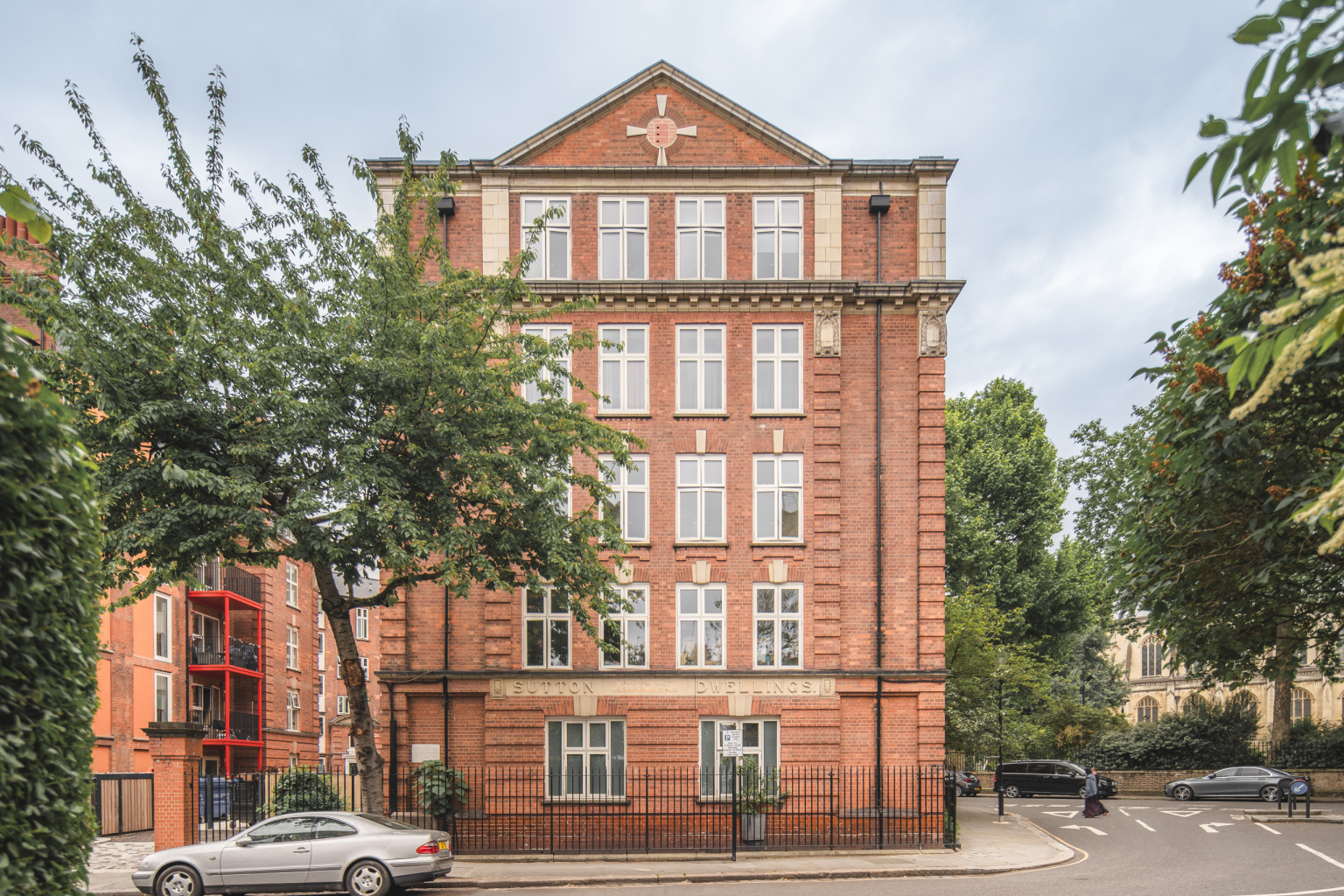

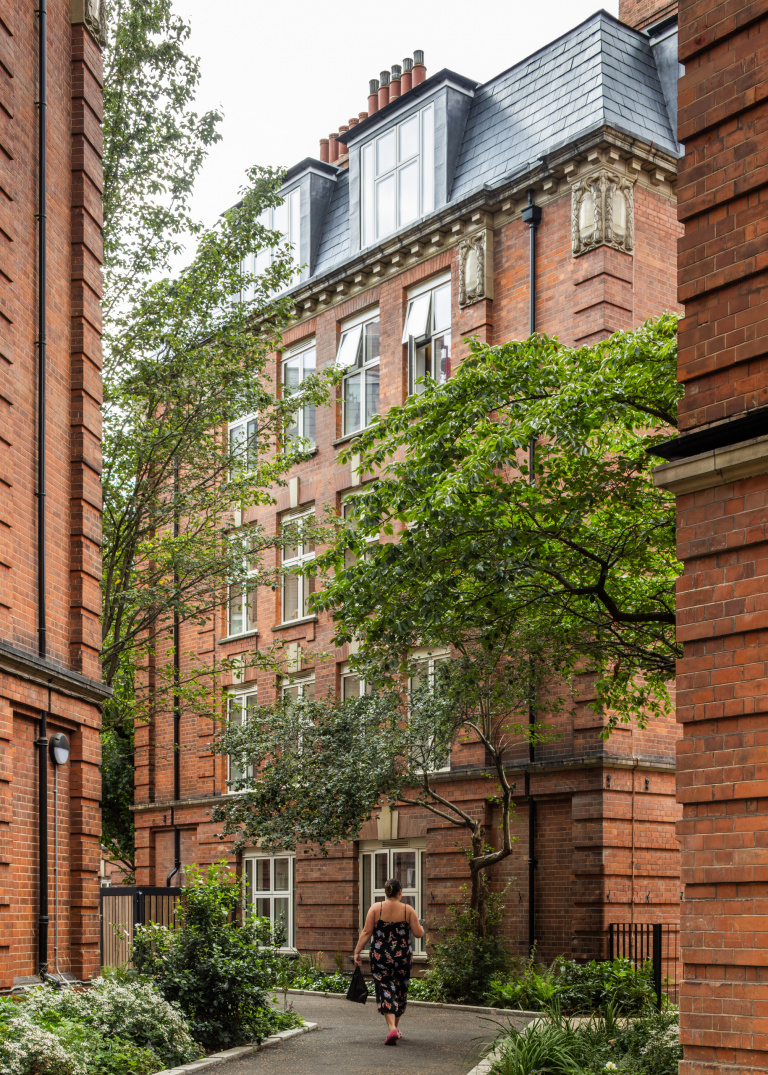

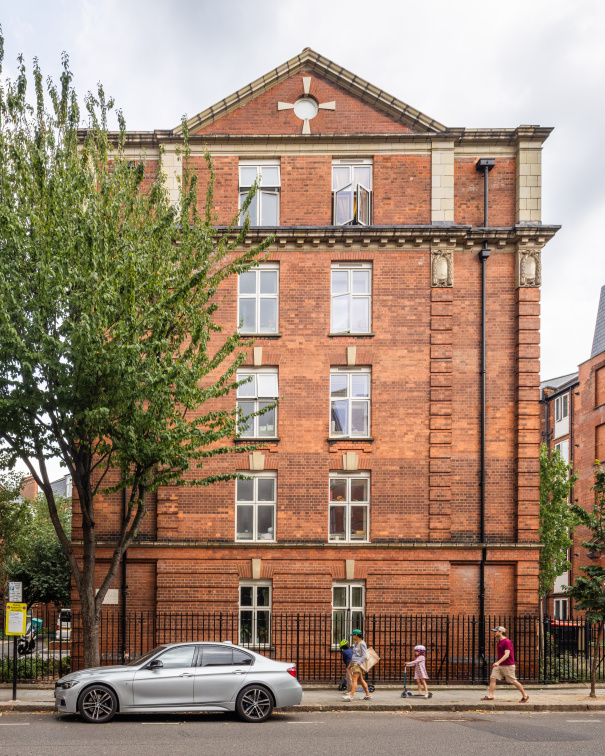

Victorian philanthropist William Sutton founded the Sutton Trust in 1894 to provide well-designed homes for those in need. The Chelsea estate, completed in 1913 and designed by E.C.P. Monson, is the largest and most architecturally ambitious. Influenced by Edwardian Baroque principles, its enduring character is defined by formal massing, red brick façades and stone detailing. The fifteen blocks form a rhythmic composition of projecting bays, recessed entrances and generous courtyards. Now part of the Chelsea Estates Conservation Area, its rich architectural identity has been carefully revived through conservation-led renovation.

HTA’s refurbishment at Sutton Estate focused on creating sustainable homes that support modern living while preserving the character of the original buildings. We remodelled the internal layouts to make them more generous, well-lit and carefully planned to support everyday life. Shared green spaces have been designed to encourage social interaction. Working with a local supplier, we carefully restored the finish and added internal wall insulation, improving thermal performance while preserving the estate’s architectural integrity.

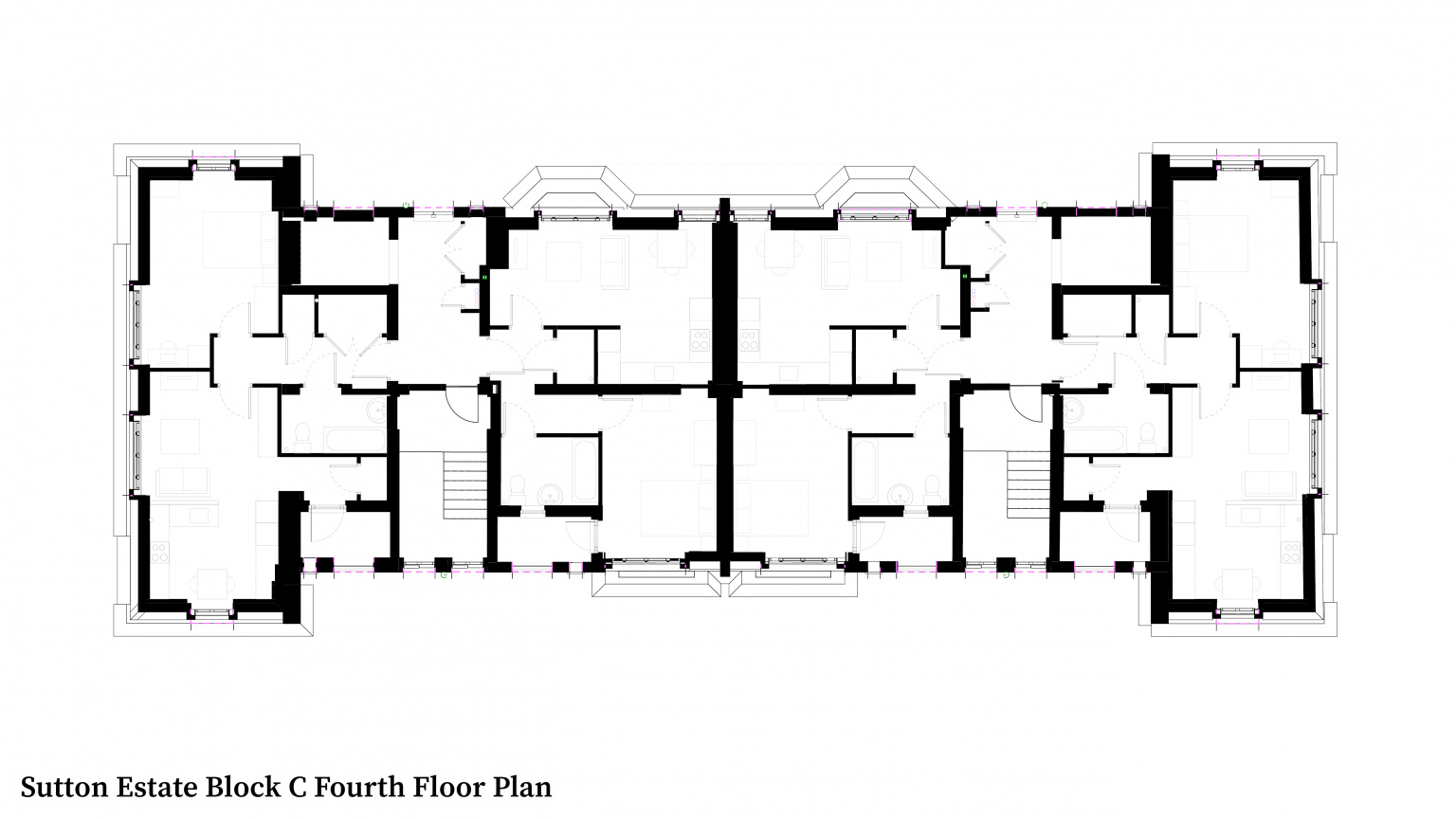

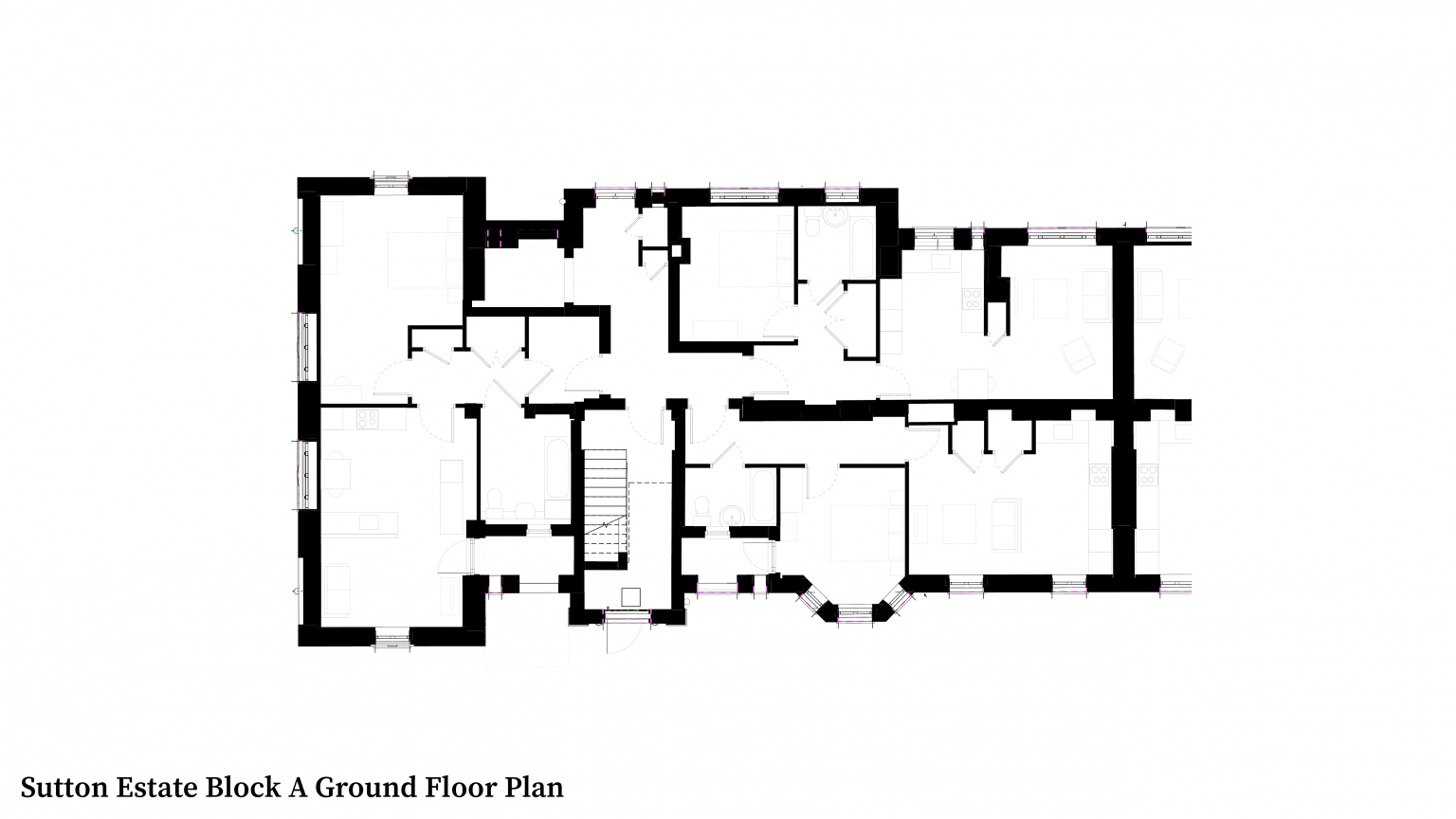

The original bedsits and undersized homes no longer met residents’ needs, so the estate was remodelled from 159 flats to 81. The new mix provides one to four-bedroom homes, including eight fully accessible flats, all designed to modern space and accessibility standards. The homes meet most of the GLA London Housing Design Guide requirements and comply with Part M4(2) and M4(3) accessibility and adaptability criteria.

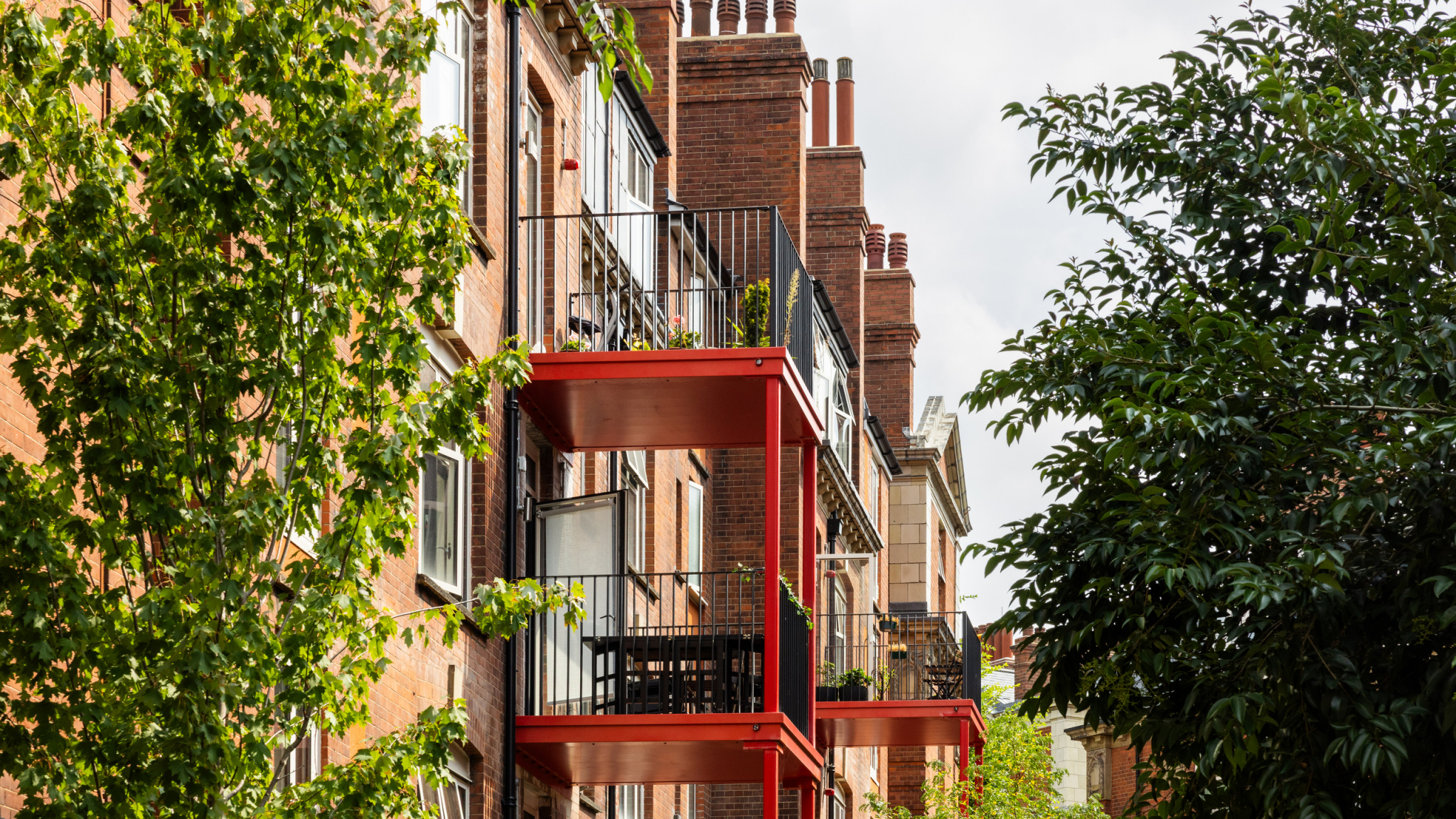

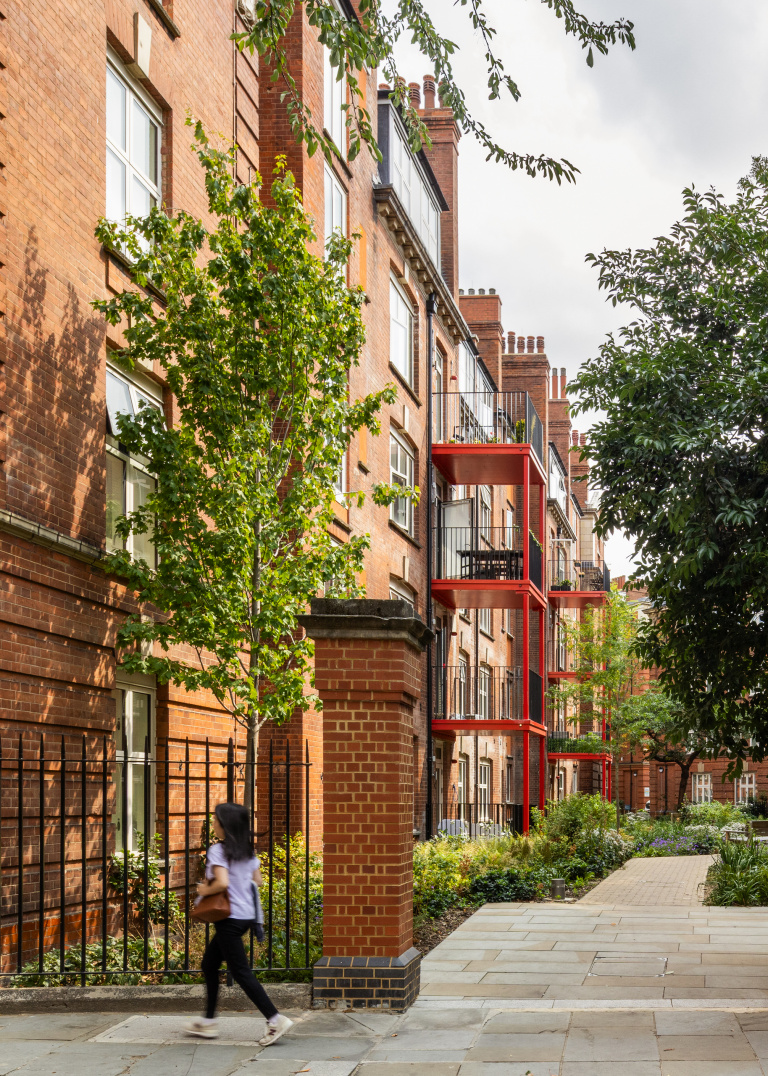

Layouts are more generous and better lit, with improved comfort, functionality and long-term sustainability. Lifts in every core now provide step-free access to upper floors, while new balconies and green courtyards encourage social connection. Of the 81 homes, 51 are for social rent and 30 at London Affordable Rent. Though fewer in number, they are significantly better homes, supporting multi-generational living, accessibility and dignity in line with the estate’s founding purpose.

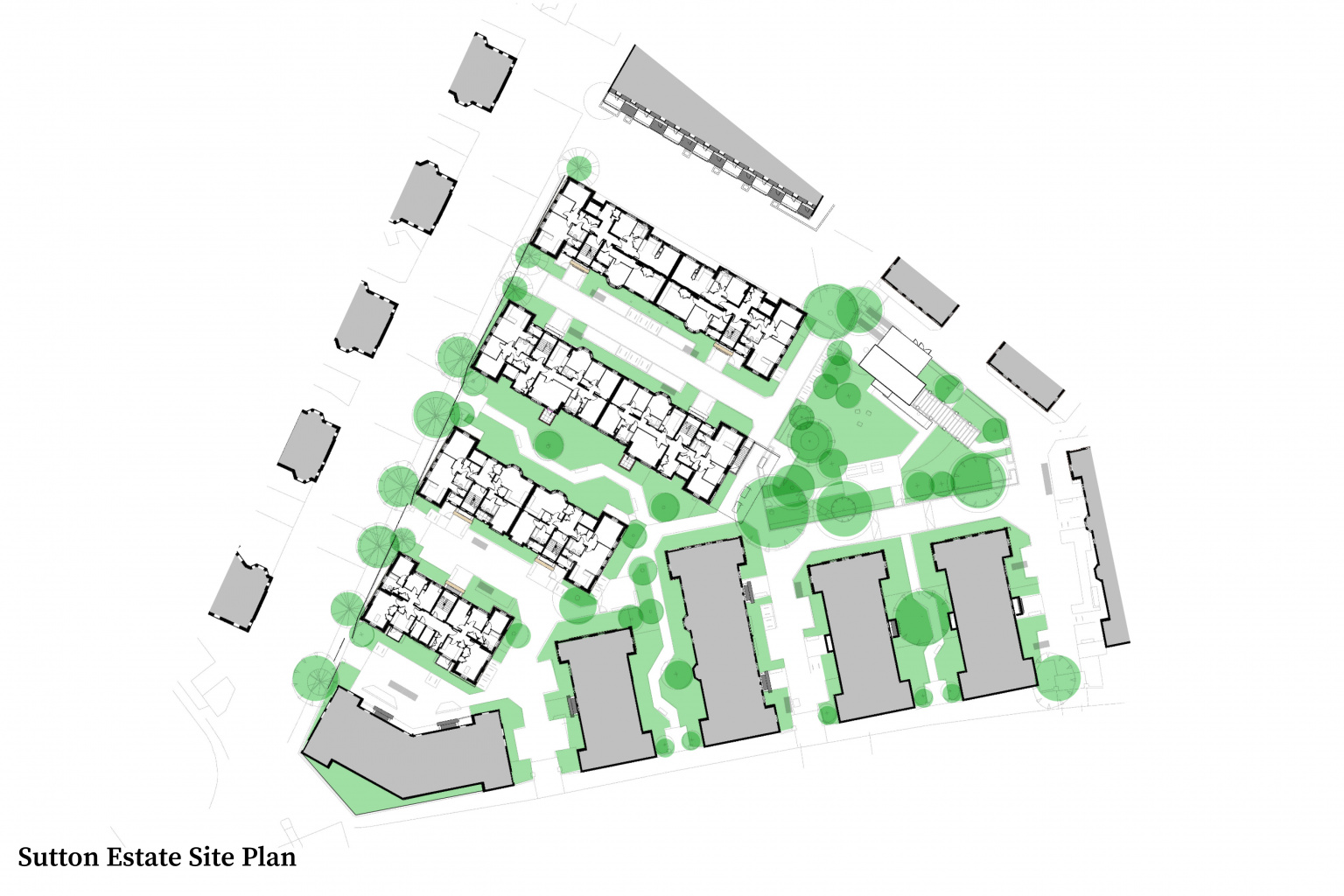

Although set in one of the most densely populated boroughs in England, the regeneration makes full use of the spaces between buildings with enriched planting and sociable places. Generous courtyards, gardens and play areas promote health and wellbeing, and residents report how much they value these spaces. Recycling and waste facilities have been improved, with new bike storage close to entrances. Communal entrances, balconies and seating areas encourage neighbourly connection, while clear sightlines and passive surveillance enhance safety.

The Sutton Estate regeneration delivers an impressive 40% net gain in biodiversity units and a 59% increase in hedgerow units, far above the national 10% Biodiversity Net Gain target. Using DEFRA’s Biodiversity Metric, these figures reflect a rigorous approach to urban ecology, combining new habitats, varied planting and sustainable drainage to create a richer, greener environment for both people and wildlife. The scheme was awarded Building with Nature accreditation, the first in London, recognising the importance of high quality planting and measurable biodiversity net gain in a dense urban setting.

The Sutton Estate regeneration creates a diverse mosaic of habitats to support urban wildlife. Bird and bat boxes have been installed on building facades to attract species such as house sparrows, swifts and pipistrelle bats. In the garden courts, bug hotels provide shelter for solitary bees, beetles and ladybirds, boosting pollination and biodiversity. A biodiverse green roof on the new caretaker’s office supports invertebrates while also helping to manage rainwater and improve insulation, with drought tolerant, low maintenance planting.

For biodiversity, the planting incorporates a wildflower meadow of native perennials, chosen for their abundant flowers. These include Yarrow (Achillea millefolium), Common Knapweed (Centaurea nigra) and Oxeye Daisy (Leucanthemum vulgare). A fruiting orchard of apple, pear and plum trees adds foraging opportunities and a sensory experience, promoting local food culture and intergenerational learning.

The primary open space at the centre of the estate has been redesigned to encourage daily interaction. Following the removal of the old pram stores and estate office, it now connects all parts of the estate and acts as a social crossroads, inviting residents to pause and gather in a green setting.

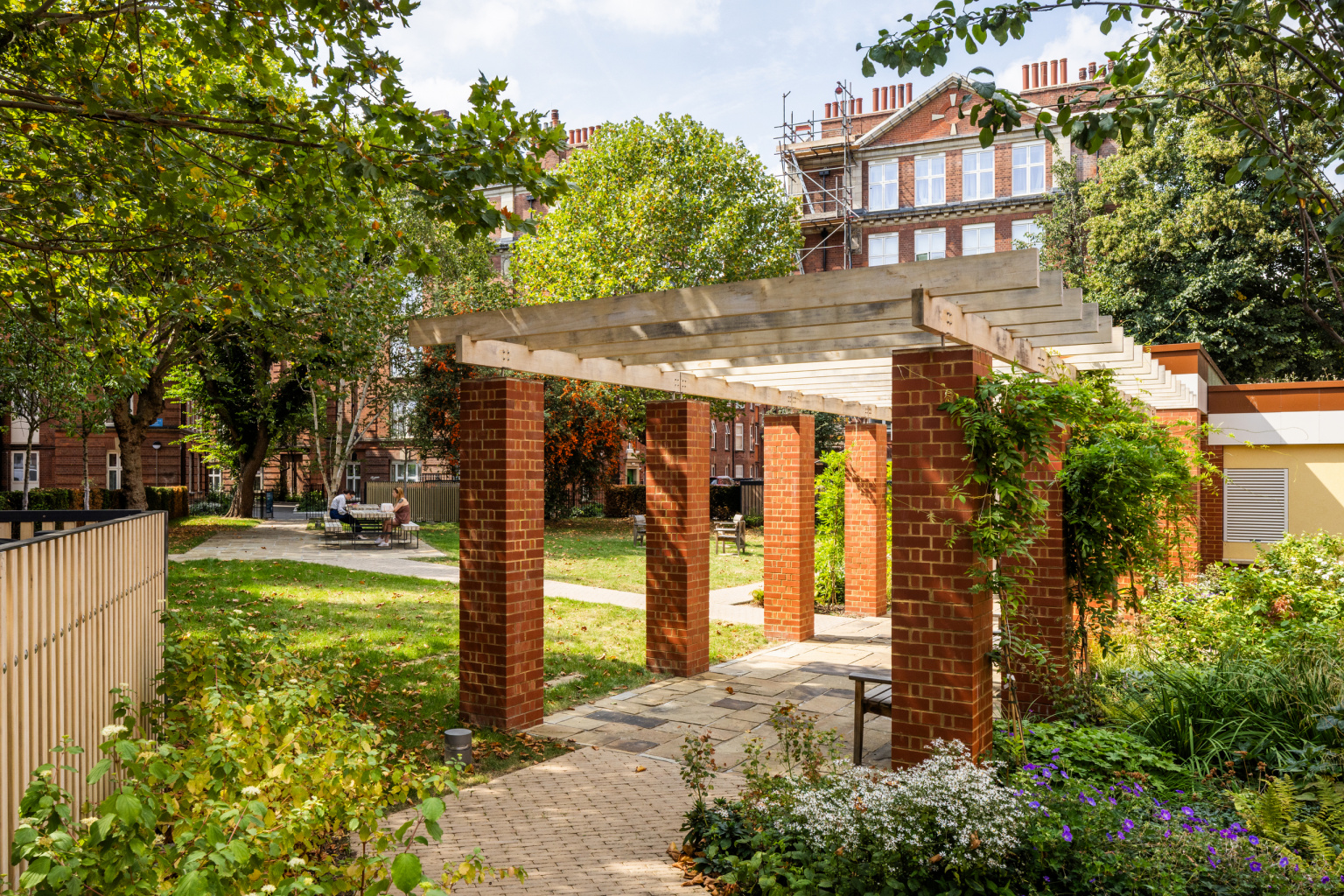

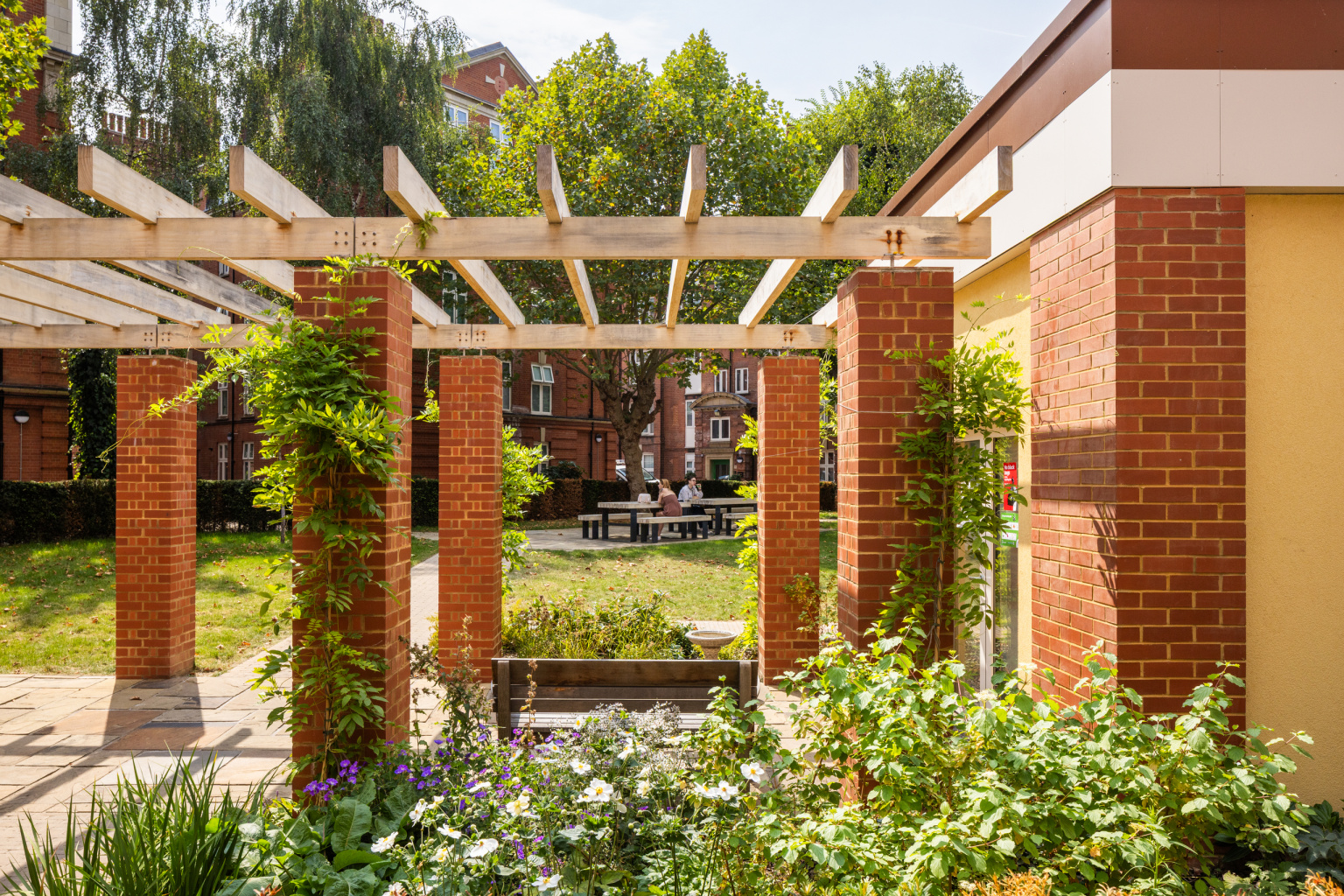

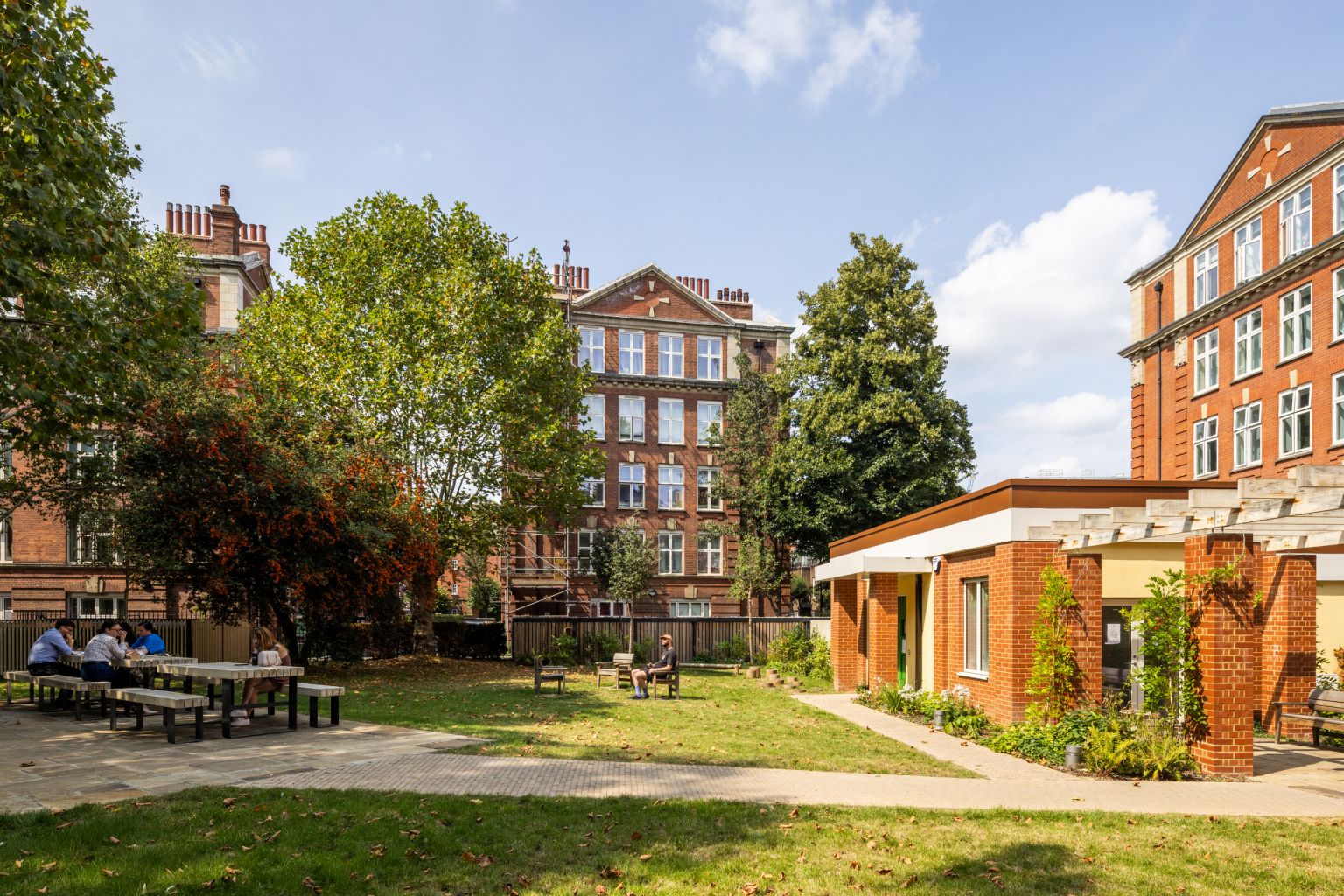

A key feature is the new pergola, a structure positioned to define one edge of the space and frame key views across the lawn. Built from brick piers and timber, the pergola provides shaded seating and references the estate’s original detailing, offering architectural interest consistent with the site’s heritage.

In the primary open space, a new rain garden collects and filters surface water runoff from surrounding buildings and paving. Each garden court also includes a rain garden, an integral part of the sitewide Sustainable Drainage Systems strategy.

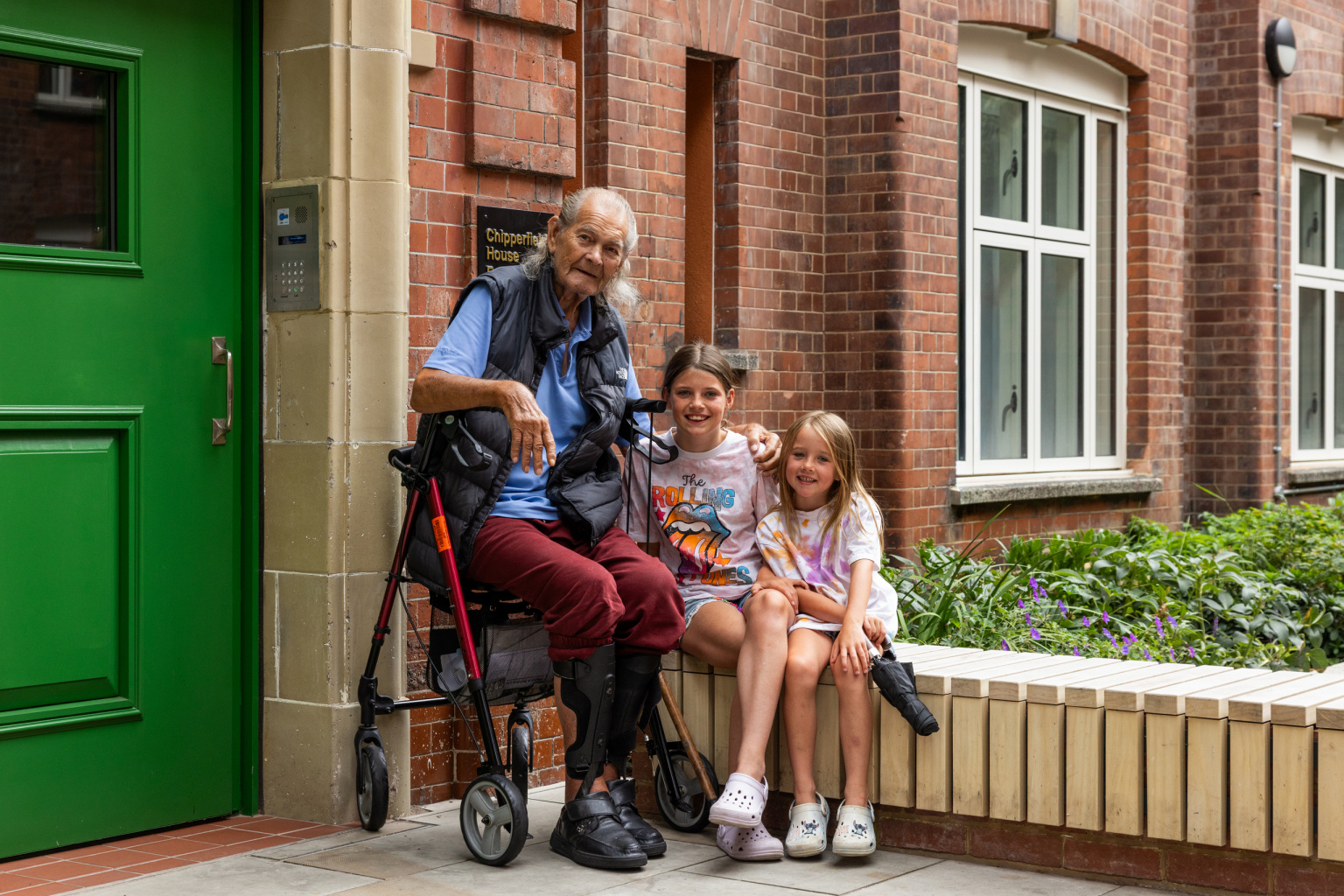

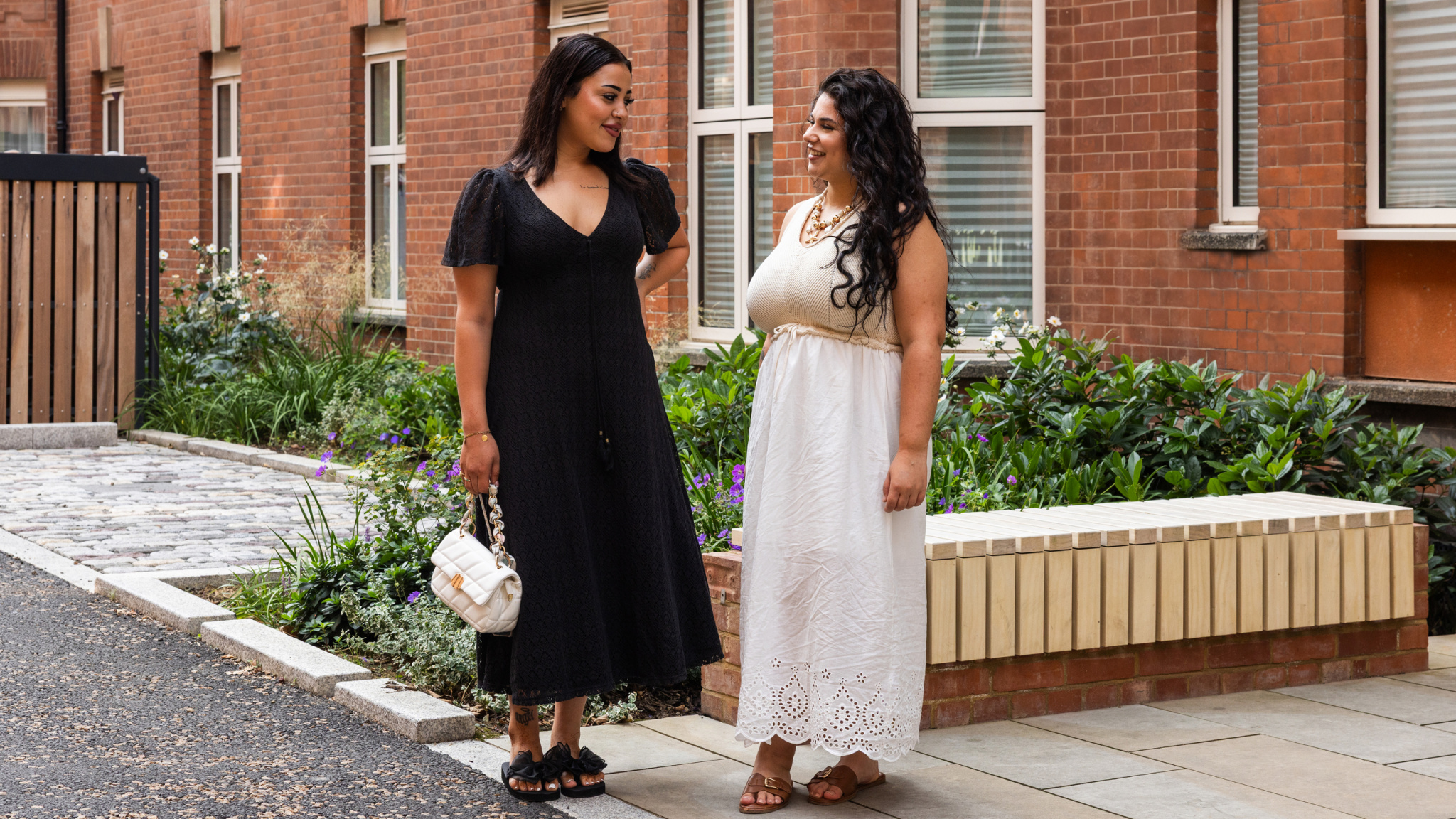

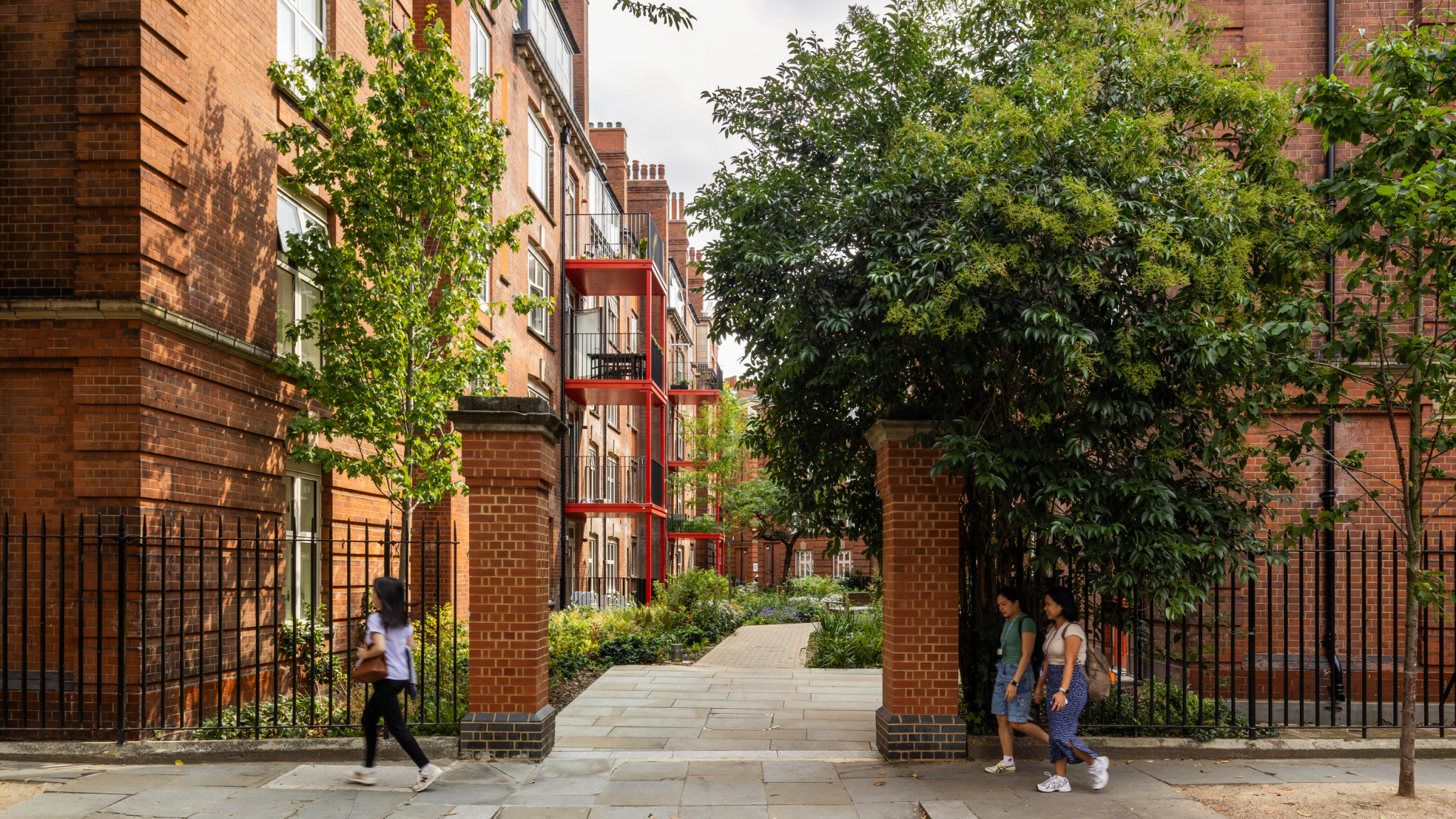

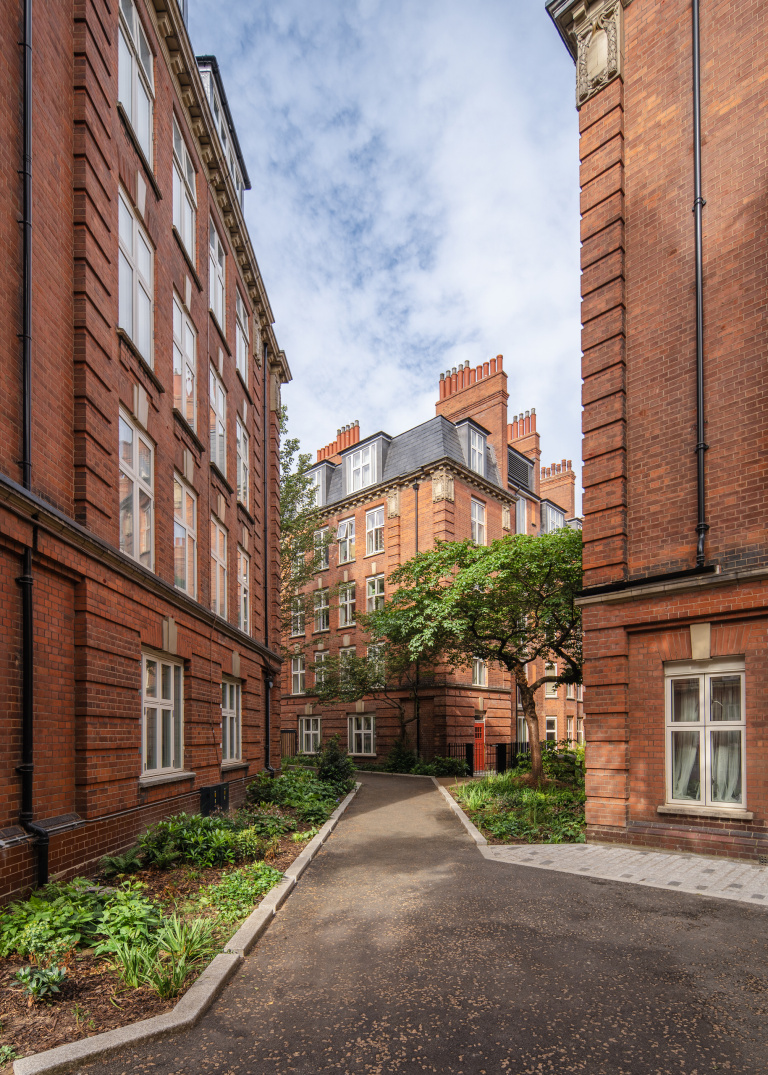

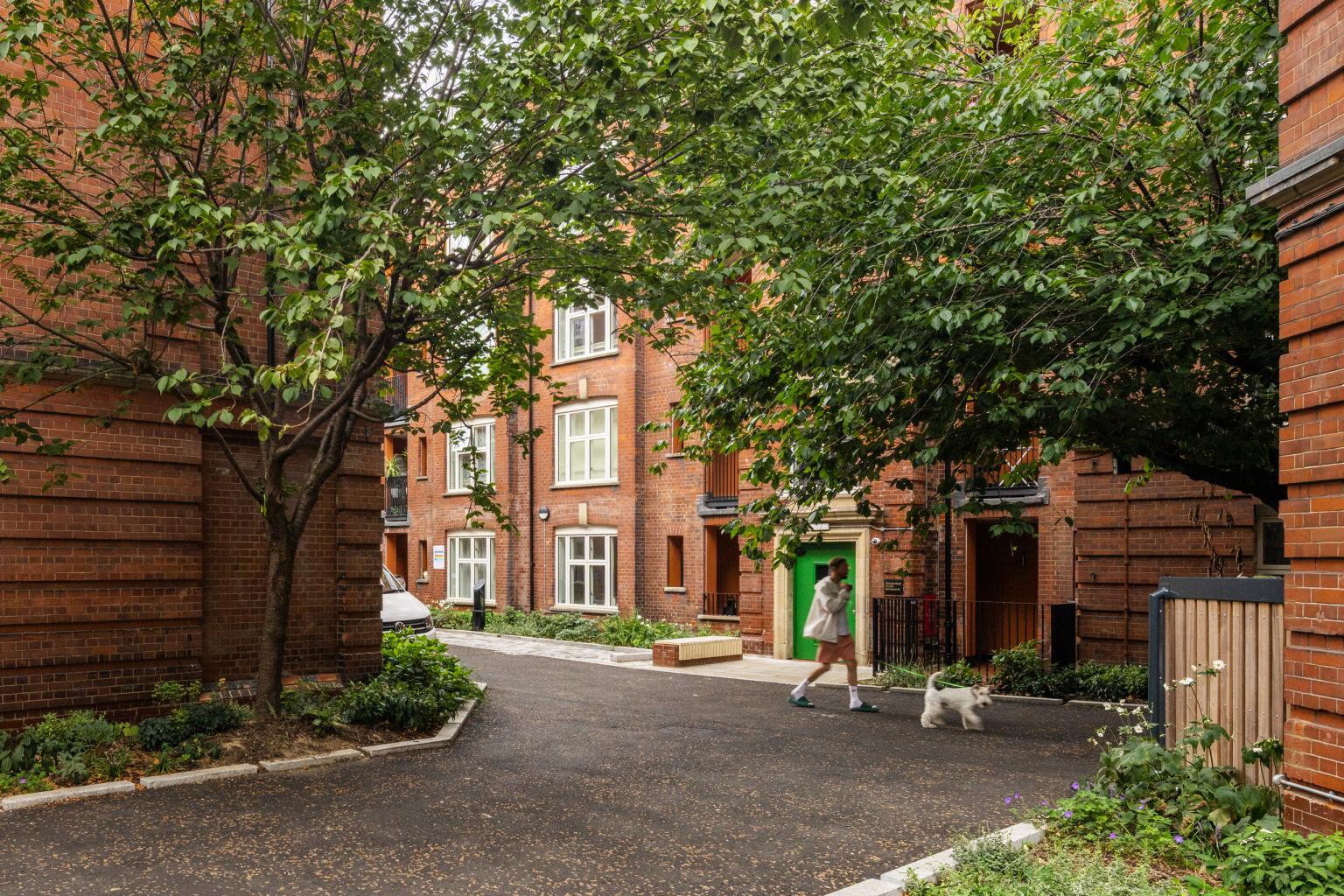

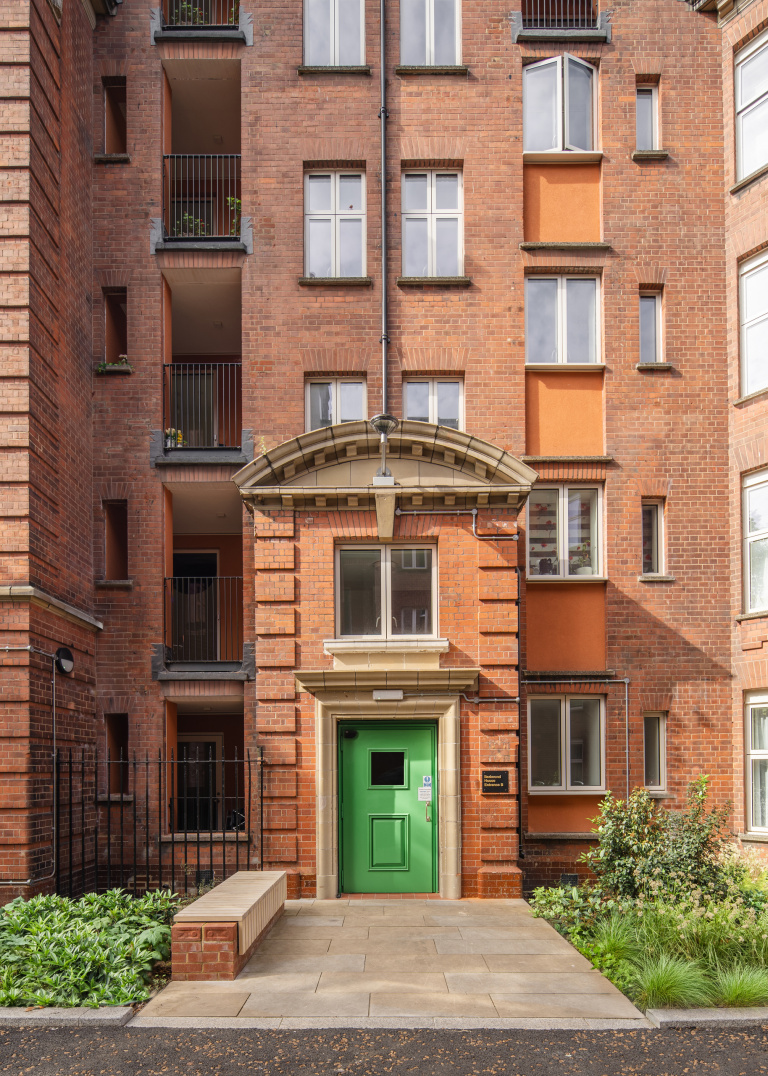

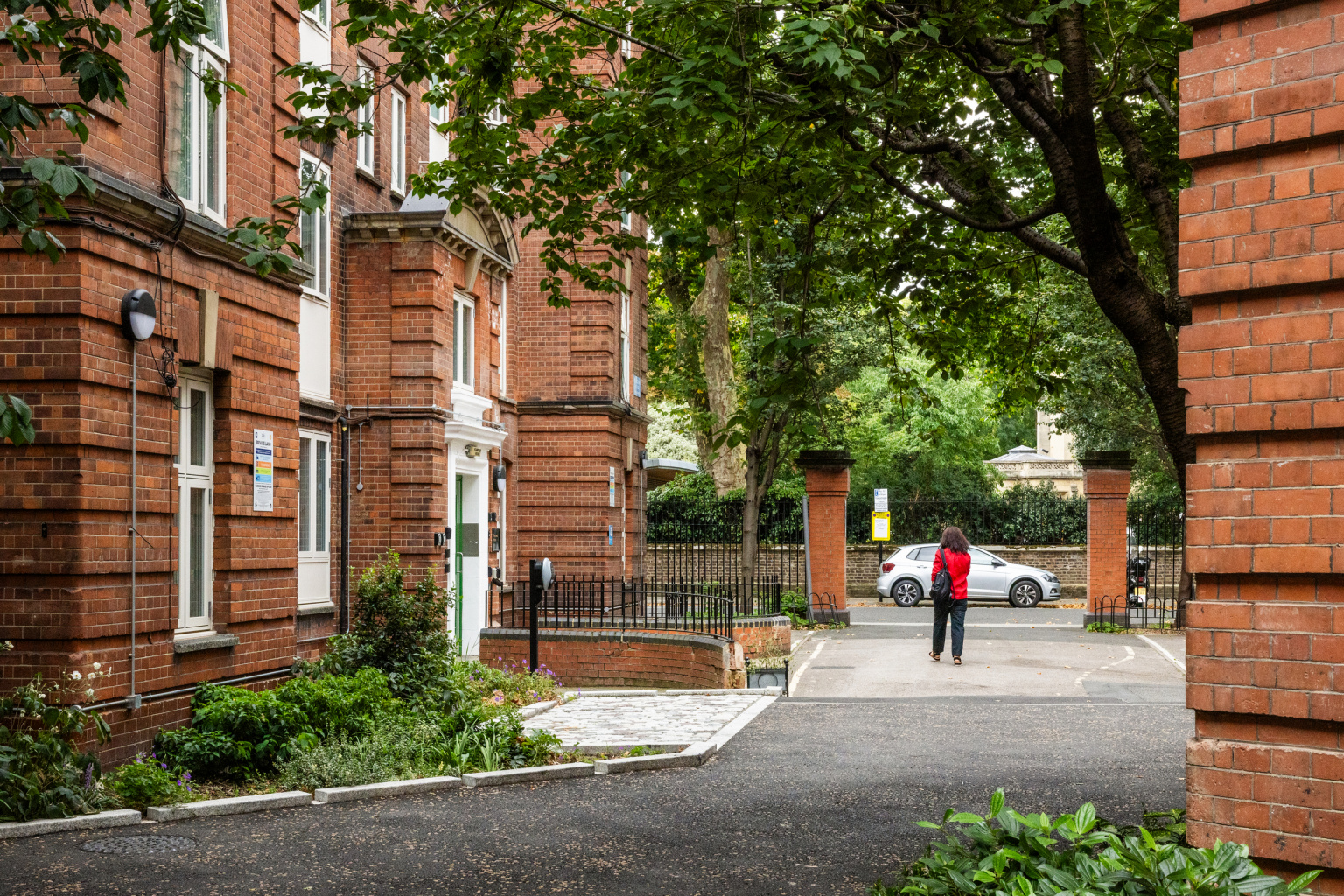

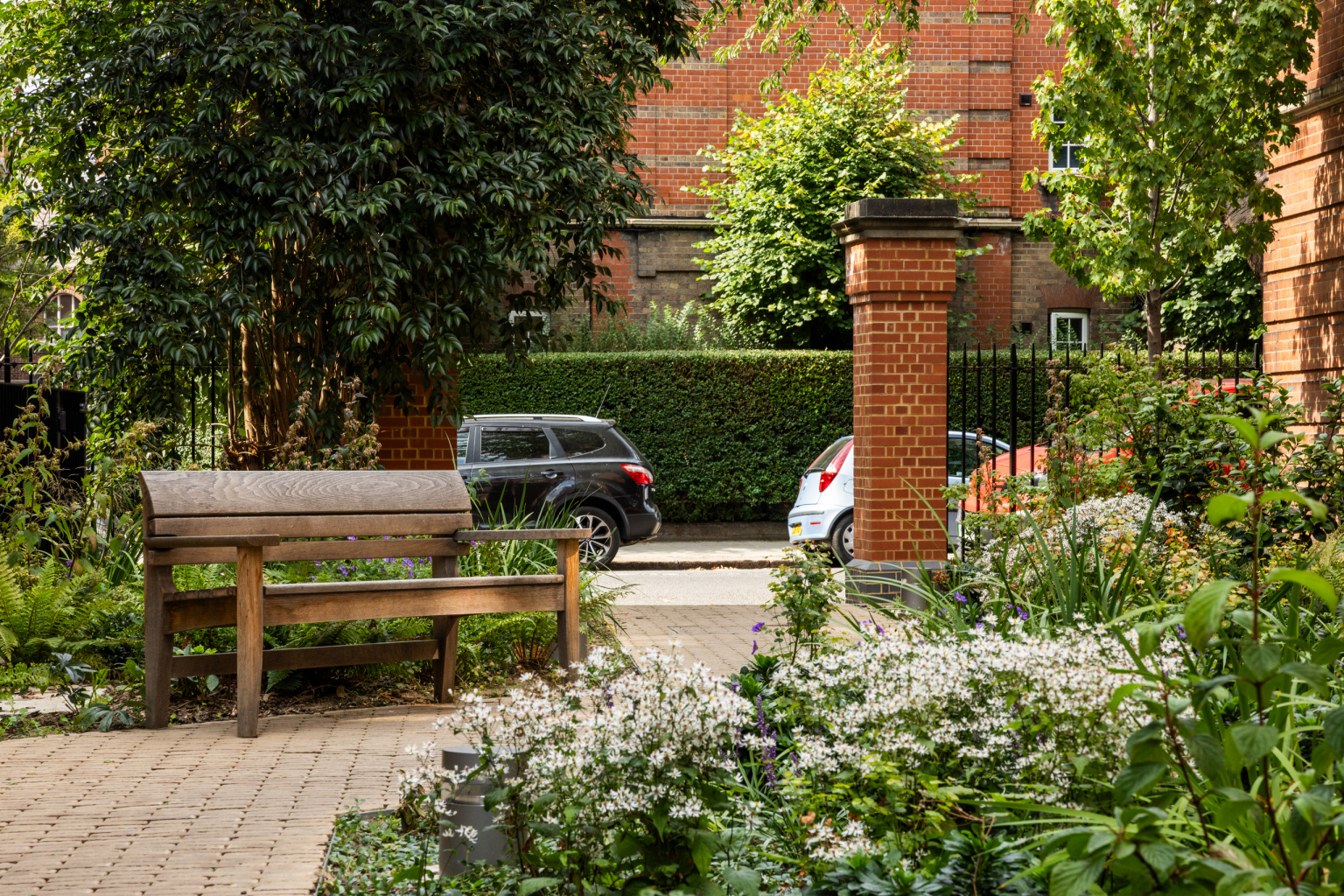

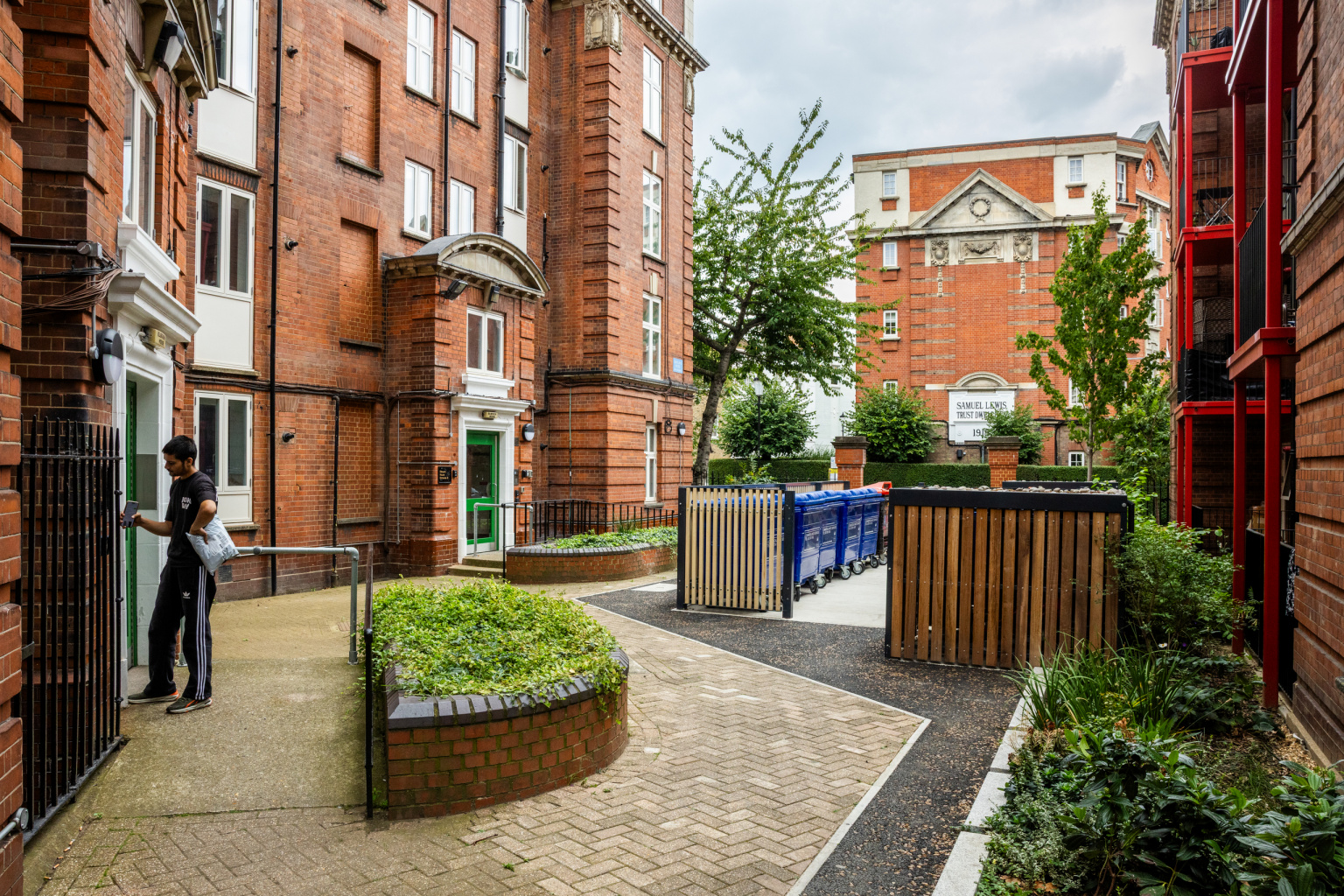

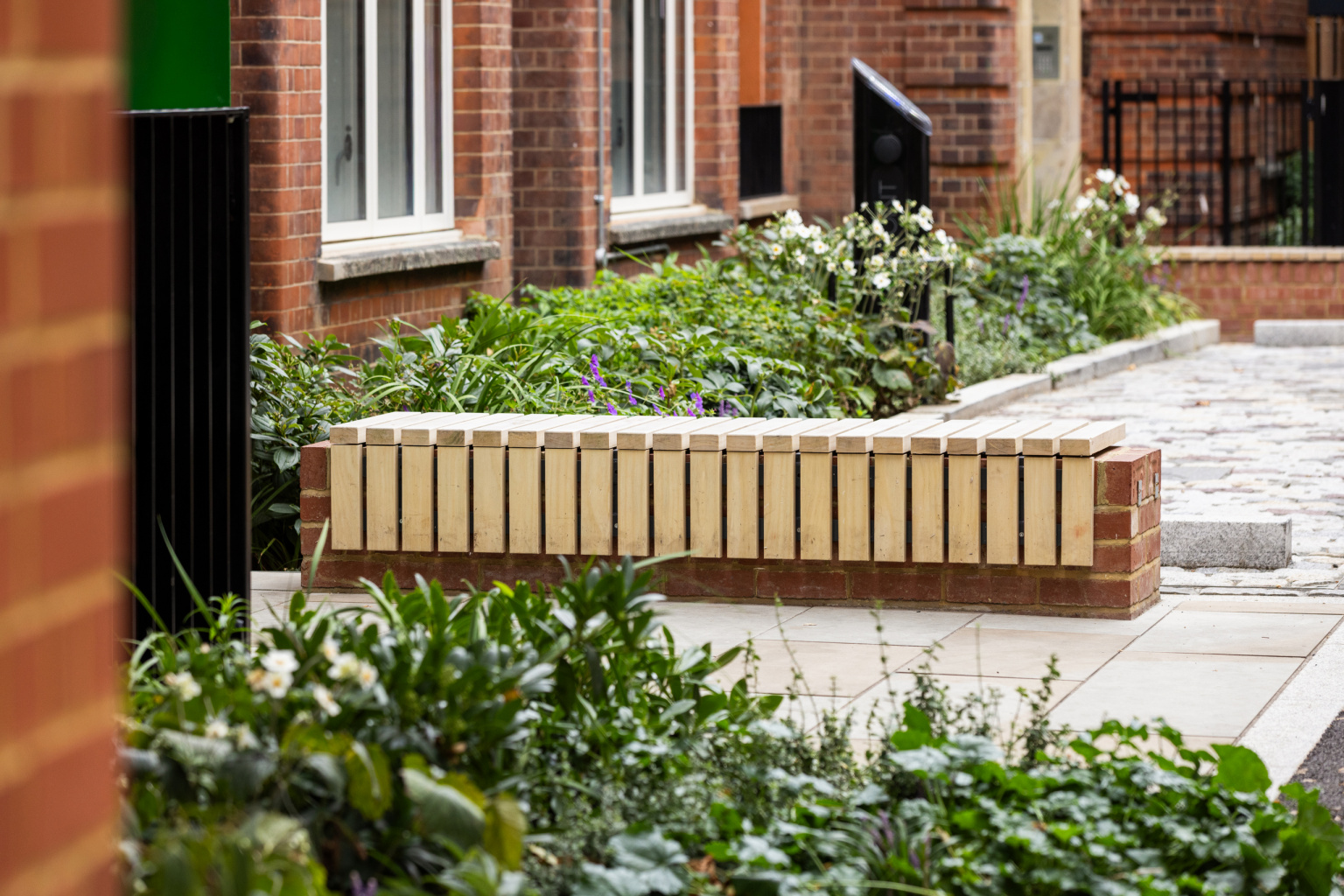

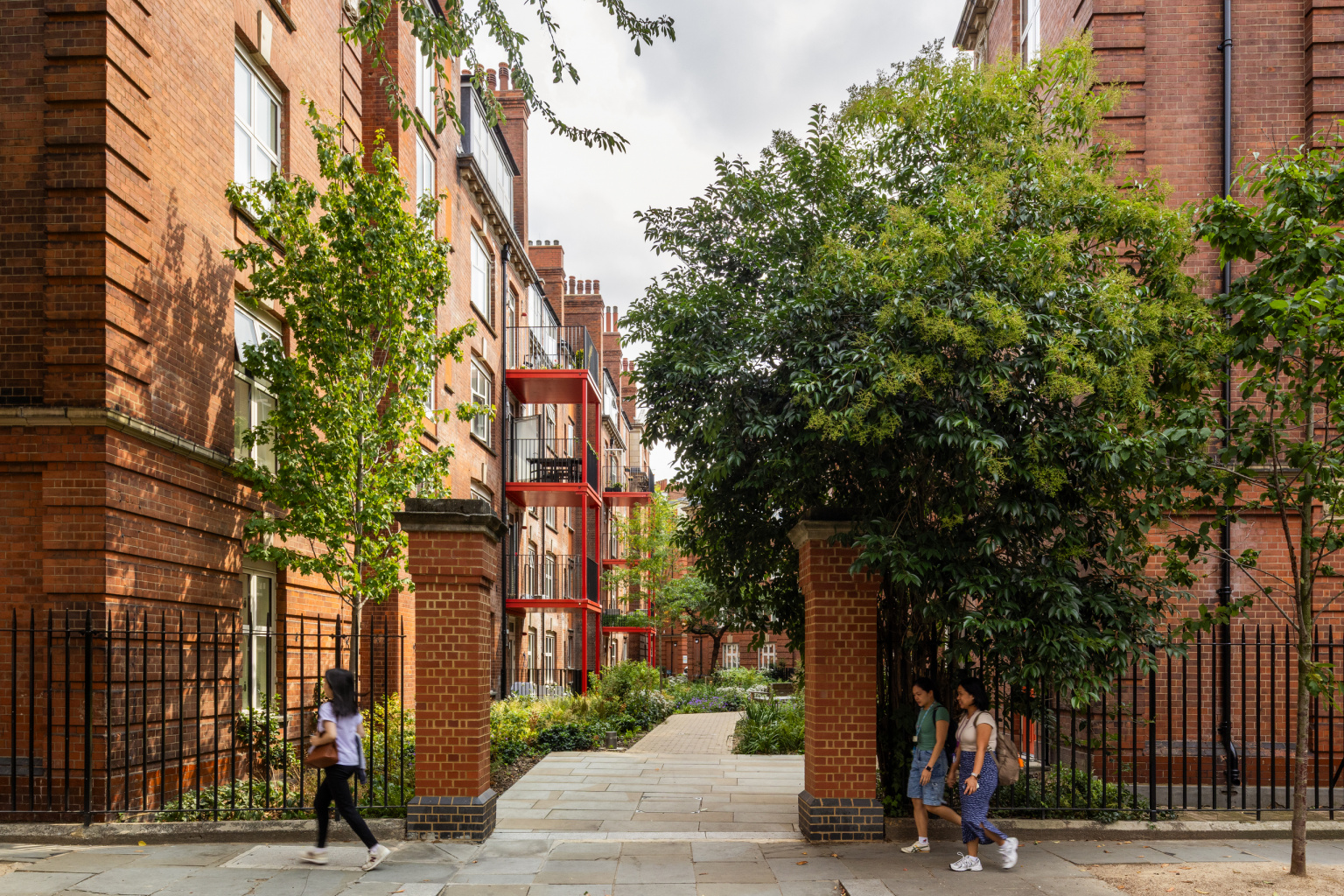

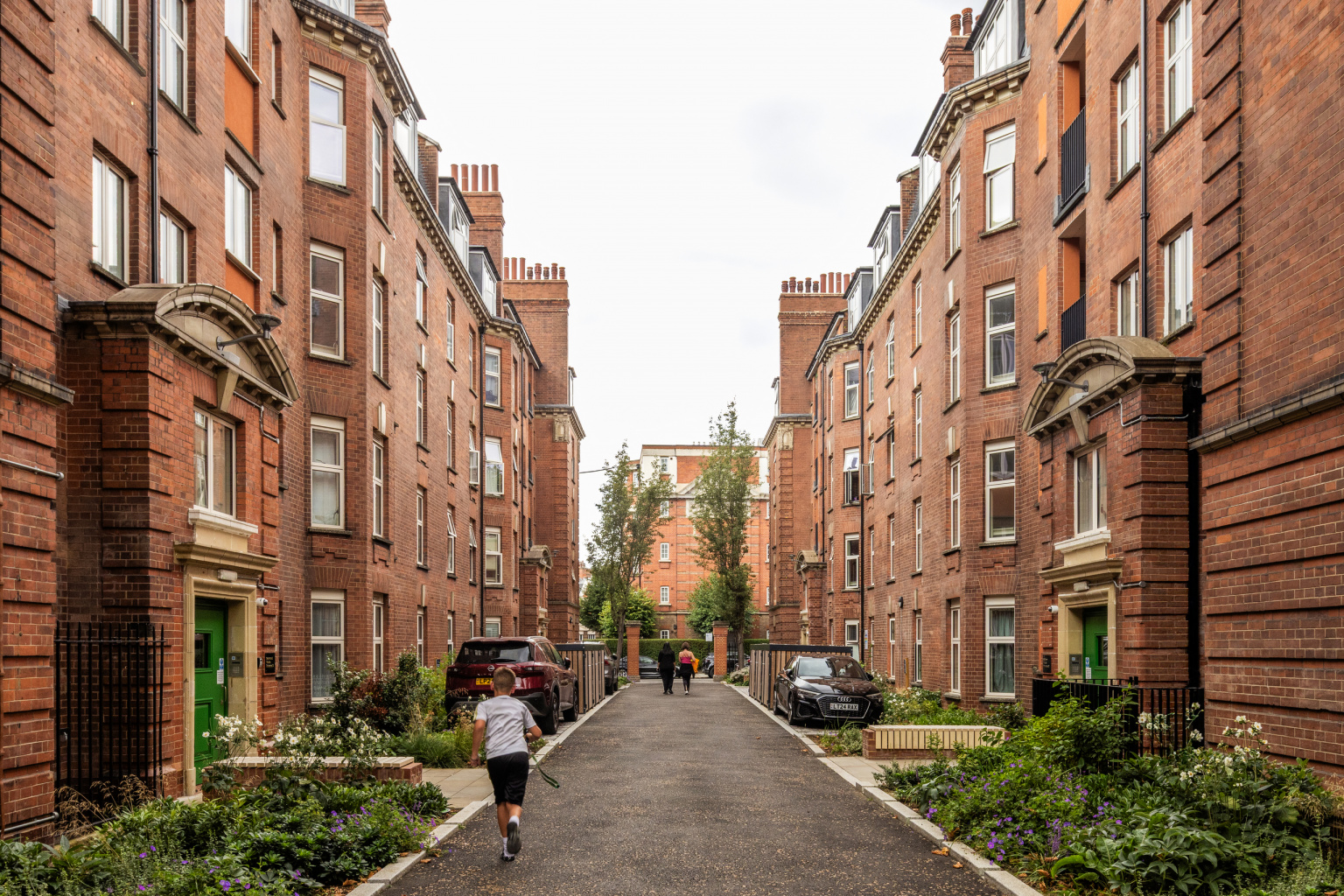

The entrance courts mark the transition from street to home, offering clear and welcoming access to each block. Improved surfacing, signage and level paths support easy navigation and inclusivity. Discreetly integrated bin and cycle stores are softened with timber cladding and planting. Robust greenery adds character without obstructing movement. The approach to the entrances has been opened up, with seating and a thoughtful layout that create opportunities for neighbours to pause and connect.

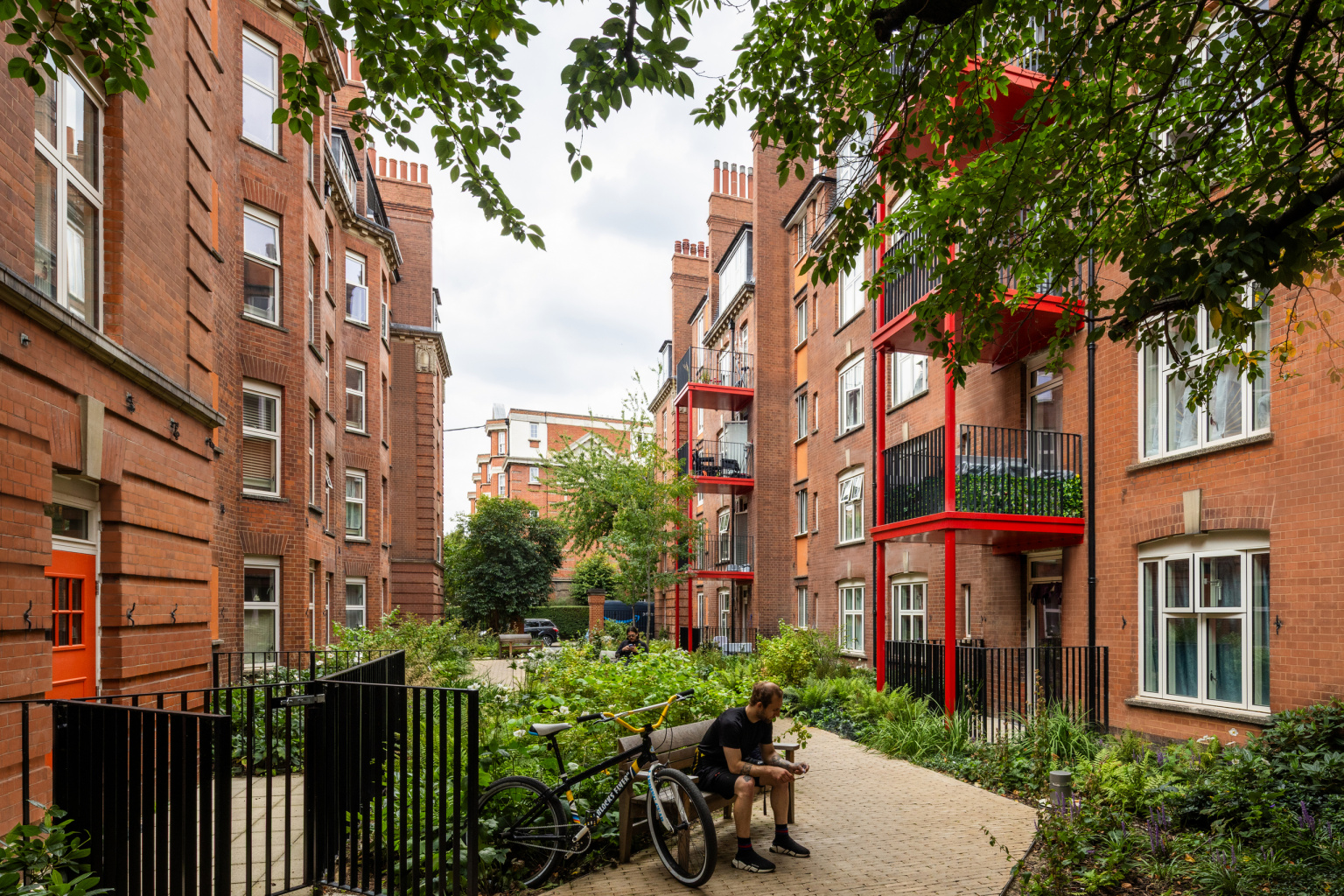

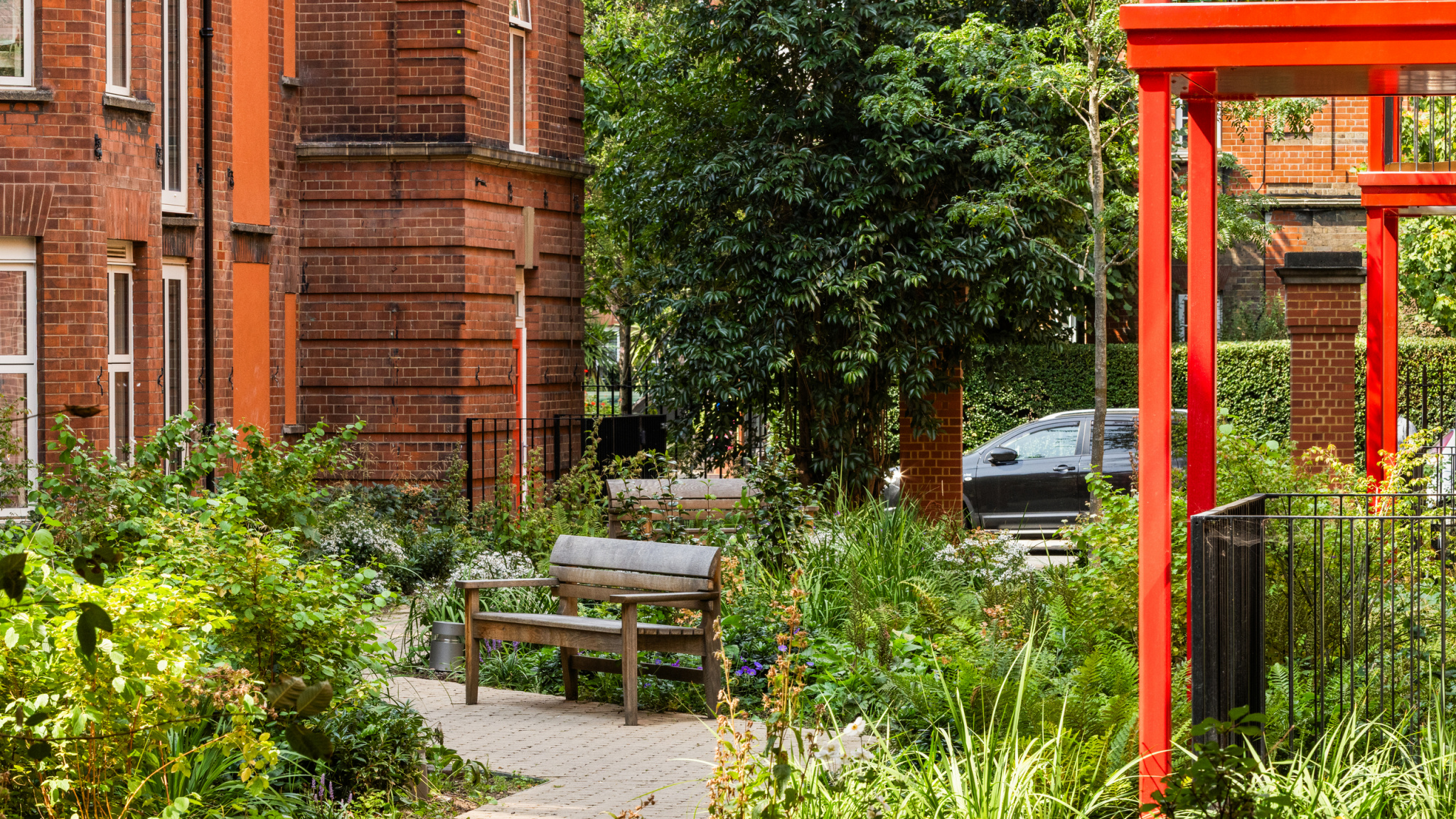

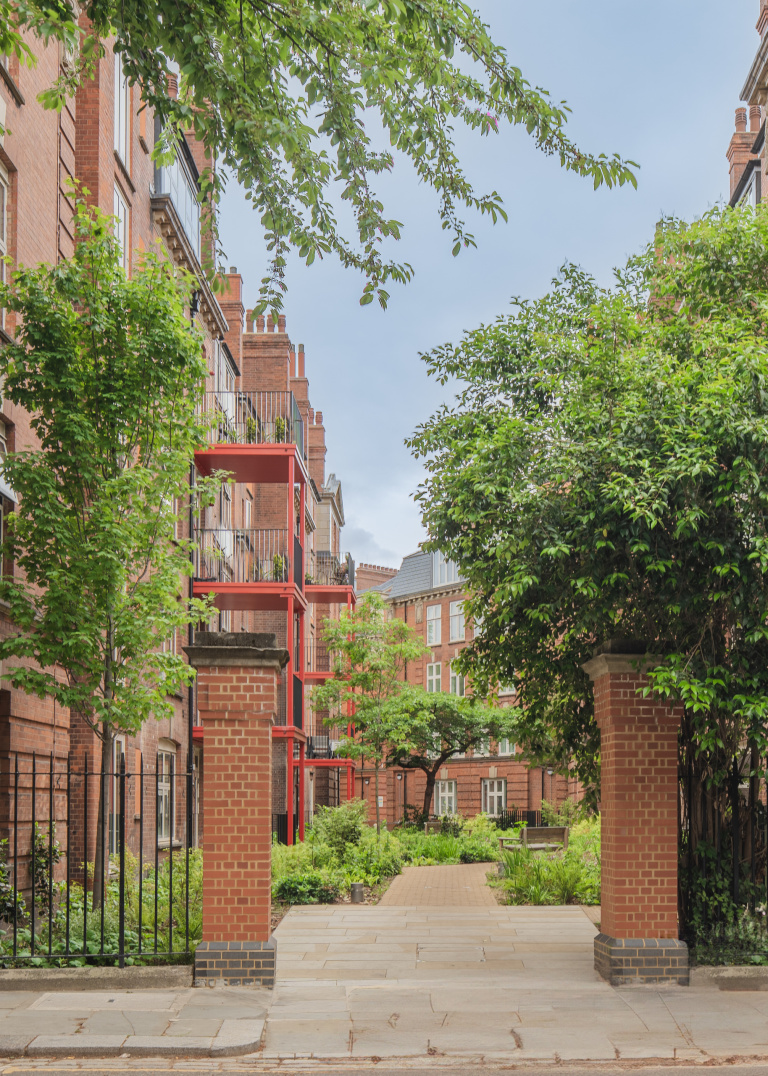

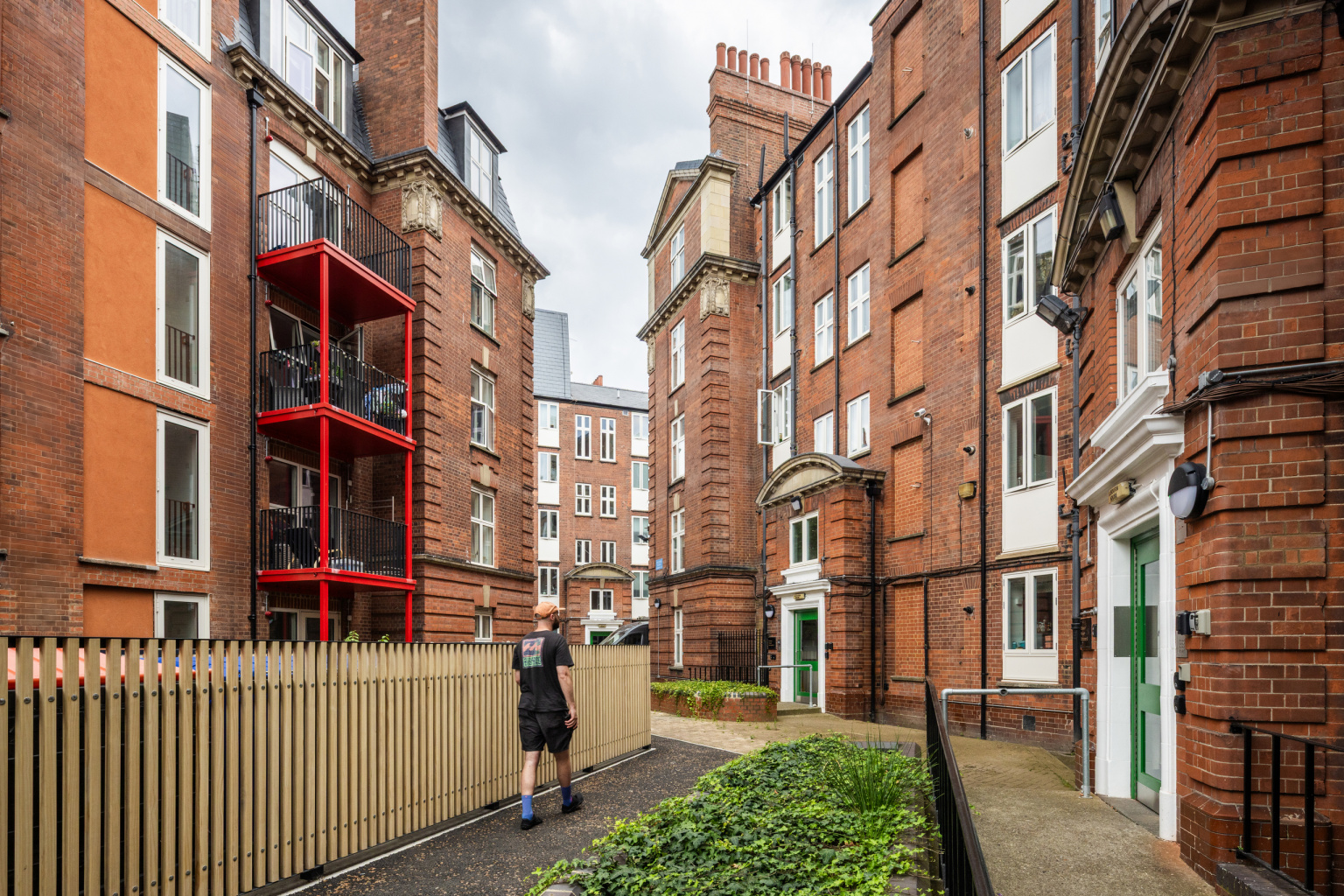

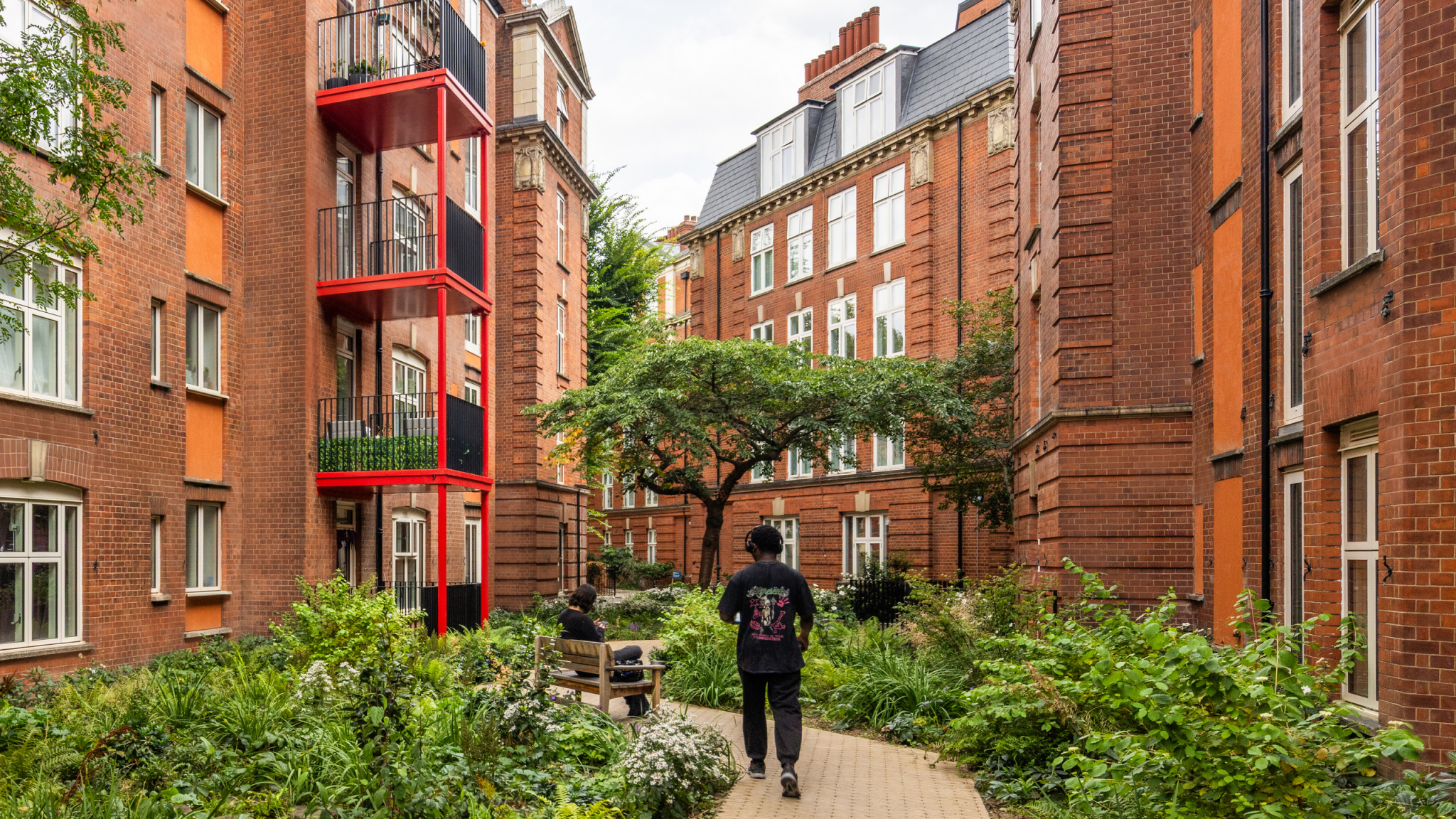

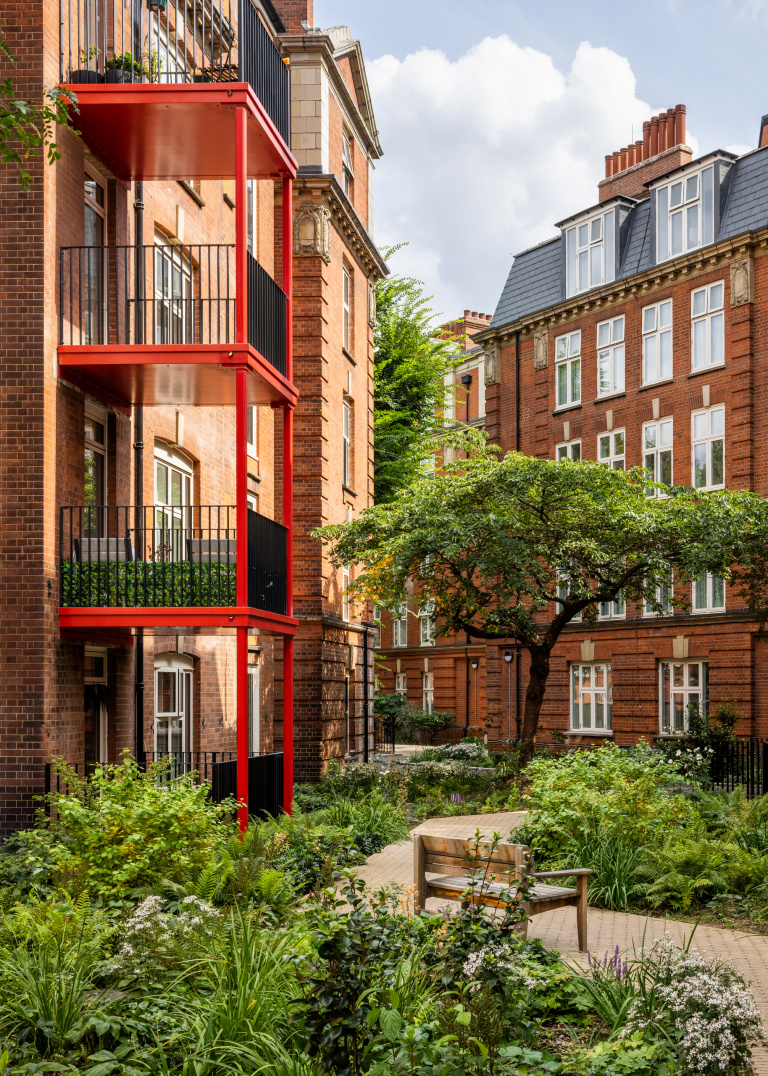

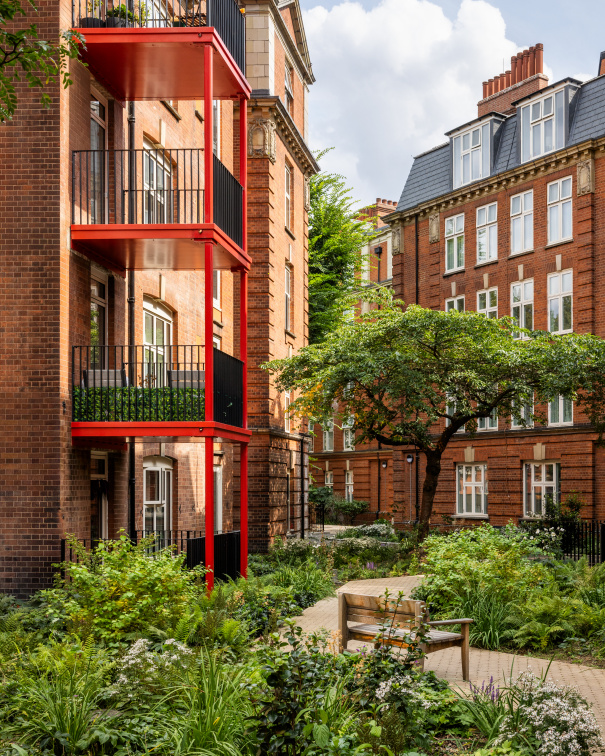

Between the blocks, garden courts have been designed as semi private green spaces, offering a more personal alternative to the main communal areas. Natural timber seating is positioned for comfort, while boulders, logs and gentle mounds introduce informal play, encouraging creativity for young children. These spaces are overlooked by balconies above, strengthening the connection between homes and gardens.

The Sunken Garden, known locally as the Residents’ Garden, has been a community initiative for more than a decade and is now secured for the long term in our masterplan for Sutton Estate. Consultation revealed its deep importance to residents, shaped by decades of everyday use and memories. As a place informally maintained and cherished by generations, we chose to preserve its character with minimal changes, honouring collective experiences and linking the estate’s past with its future. Subtle access and biodiversity improvements have been introduced, while mature planting has been retained to maintain its gentle, secluded and special quality.

The sustainability approach at Sutton Estate is predicted to deliver a 75% reduction in energy consumption, a 73% cut in carbon emissions and a 57% reduction in heat loss across the estate. These achievements reflect a strategy focused on refurbishing the existing Edwardian buildings to secure their long-term future. This approach has an inherently low carbon footprint, as the embodied carbon is already locked into the original structures. By upgrading the fabric and layouts to modern standards, the project avoids the far higher emissions associated with demolition and rebuilding.

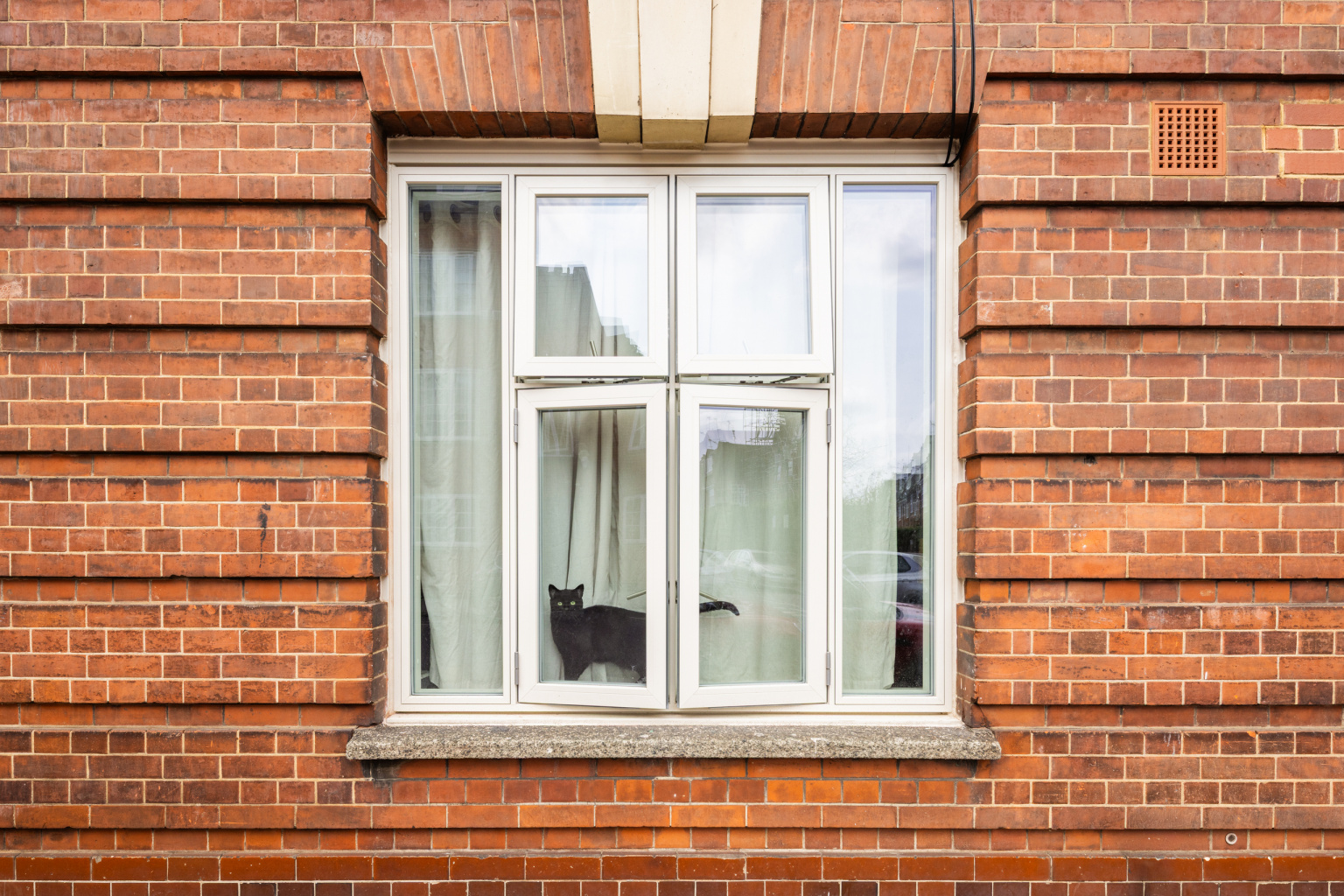

Our fabric-first approach prioritised thermal improvements to the existing buildings. Internal wall insulation was introduced to achieve optimum performance with minimal risk of interstitial condensation, resulting in a U-value of 0.5 W/m²K. New double-glazed casement windows improve ventilation, daylight and ease of cleaning, while enhanced airtightness reduces heat loss. These measures are designed to meet the RIBA 2030 Climate Challenge targets, significantly lowering operational energy and carbon emissions. Water-saving measures include low-flow sanitary fittings, efficient appliances and recycling strategies to limit consumption.

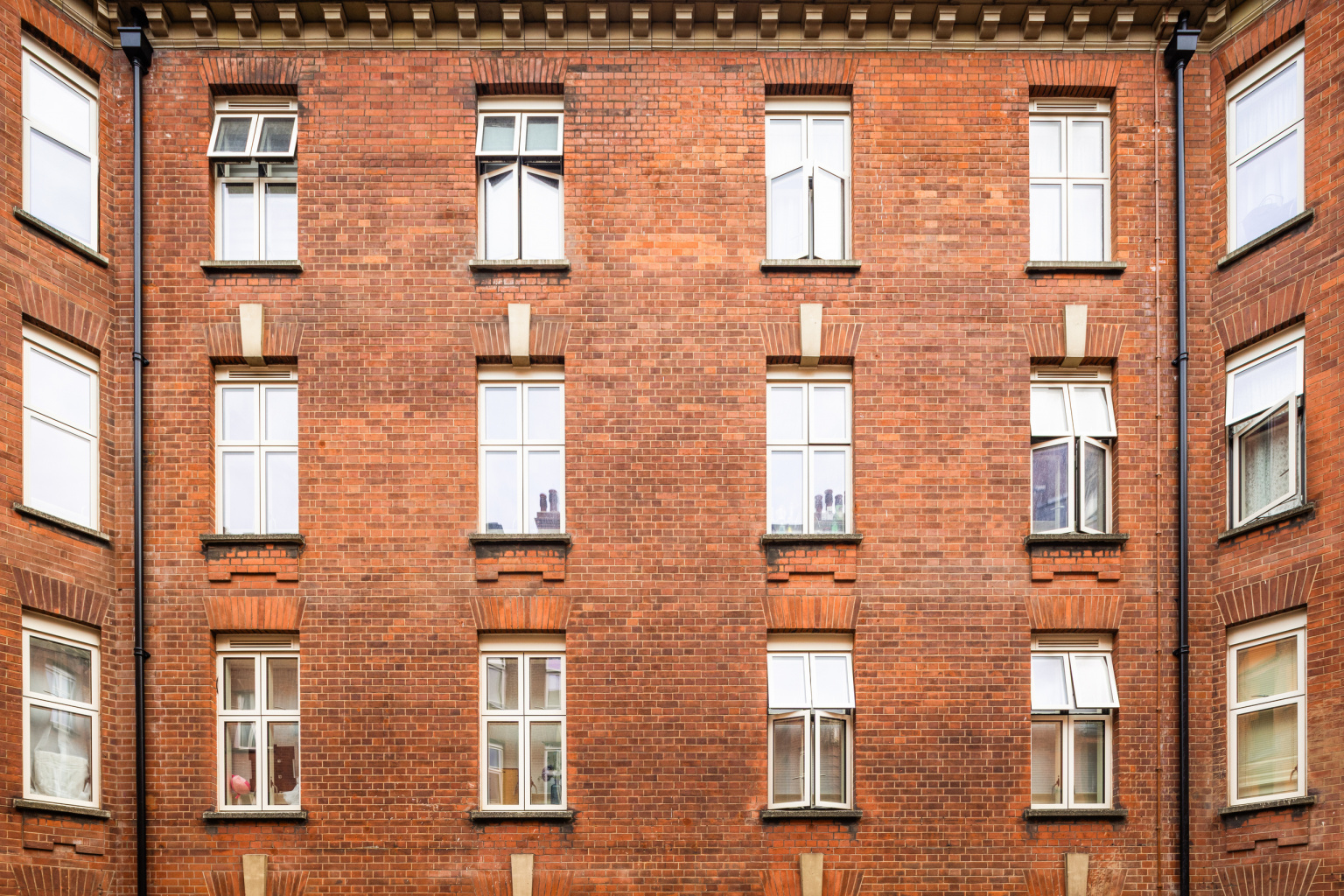

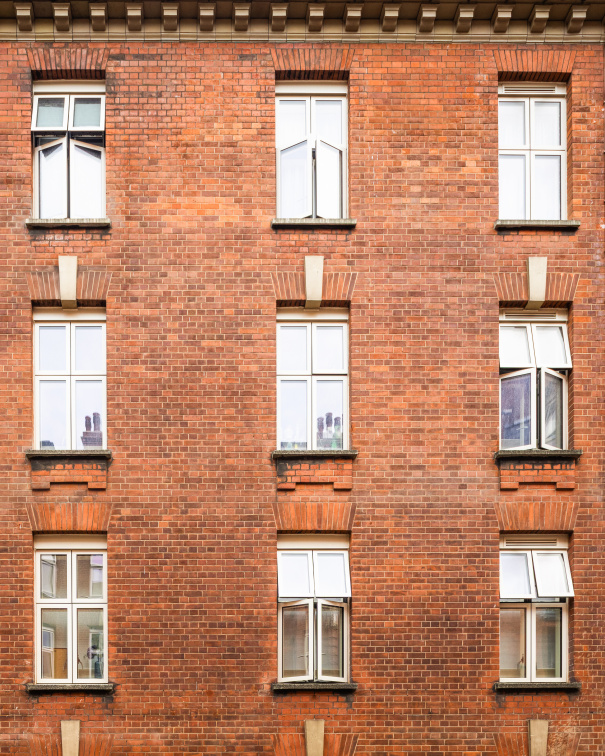

Materials were selected for their low embodied carbon, durability and contribution to circular economy principles, with emphasis on reuse, recycled content and local sourcing. Deconstruction works provided reclaimed bricks to repair damaged façades, many marked by disused gas boiler flues. Retaining and repairing the original brickwork and faience reduced demand for new materials, while historic terracotta was restored by local specialists Darwen Terracotta to preserve the estate’s Edwardian character. New aluminium-framed windows were chosen for their recyclability, low maintenance and colour-matched finishes, combining heritage with sustainability and lifecycle performance.

As part of the wider sustainability strategy, the energy system demonstrates the feasibility of ground source heat pumps in dense urban sites while providing affordable energy for historic buildings. Working with specialist Kensa, we installed 27 boreholes drilled to a depth of 200m, connected via a shared underground manifold to individual Shoebox heat pumps in each flat. Using the ground’s consistent temperature, the system delivers hot water and space heating quietly and efficiently, with zero on-site emissions.

Alongside its environmental benefits, the system brings significant cost savings for residents. Annual running costs range from £301 for a one-bedroom flat to £712 for a four-bedroom home, averaging £441 per property (based on a 24.5p/kWh unit electricity price, 2025 data from Kensa).

We worked with Clarion Housing Group to develop varied approaches to engagement, ensuring we reached as many residents as possible. Communication was both physical and digital, with older residents supported by sheltered housing block managers to join the relatively new Zoom workshops. Using a combination of online engagement and newsletters, we were able to connect with all 462 households during the COVID-19 pandemic.

Between April and September 2020, the programme featured six key events. Four monthly Resident’s Steering Group workshops explored design ideas ranging from housing mix to landscape, accessibility and sustainability. In August 2020, a walkabout for stakeholders included local interest groups and councillors, with feedback focused on heritage restoration and communal spaces.

In September 2020, a socially distanced outdoor cinema event attracted 40 residents and stakeholders. A giant screen brought the regeneration plans to life, with presentations and live Q&As hosted by the Design Team and Clarion. This format drew in residents who had not previously engaged, encouraging them to share further feedback.

The ‘Chelsea Chat’ newsletter was delivered to all 462 homes to reach those unable to attend sessions. It provided clear updates on design progress, timelines and events, written in a friendly, accessible tone. Large print, Braille and translated versions ensured everyone could take part.

Through this programme, and targeted work with the Resident’s Steering Group, we refined the designs inside and out. Room layouts were adjusted to suit modern needs, with improved daylighting. Outdoors, secure boundaries, lockable cycle storage and accessible paths were added. Resident preferences also shaped wildflower planting, rain gardens and flexible garden furniture, enhancing sustainability and encouraging greater use of outdoor spaces.
